OUTERDOOR OPTICAL FIBER CABLE


Fiber optic cables for outdoor applications are engineered to withstand the more demanding conditions seen outside, from environmental extremes to mechanical forces.



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

OUTERDOOR OPTICAL FIBER CABLE

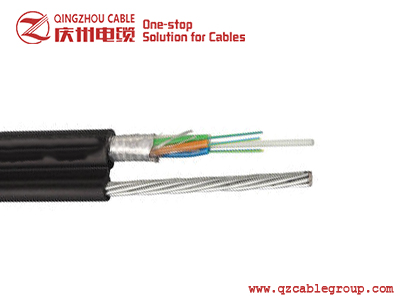

Aerial Self-supporting Armored Figure 8 Cables

Armored Figure 8 Cables Description:

The Aluminium Polyethylene Laminates (APL) protects the cable from rodent and termites. The PE Sheath provides UV and Chemical/Oil resistance. Steel Wire as central strength member, stranded loose tubes construction with 100% filling compound to prevent ingress, Aluminium Polyethylene Laminate (APL) for Armouring, Stranded Wires as self-support and overall PE Outer sheath.

Application: Outdoor Self-Supporting Aerial installation

Aerial Self-supporting Armored Figure 8 Cables

Cable Type    (Increased by 2 fibers)

Fiber Count

Cable Diameter   mm

Cable Weight kg/km

Tensile Strength Long/Short Term N

Crush Resistance Long/Short Term N/100mm

GYTC8S/A  2 ~ 30

2 ~ 30

9.5 x 19.1

160.0

2000/6000

300/ 1000

GYTC8S/A 32 ~ 36

32 ~ 36

10.1 x 19.7

170.0

2000/6000

300/ 1000

GYTC8S/A 38 ~ 60

38 ~ 60

10.8 x 20.4

180.0

2000/6000

300/ 1000

GYTC8S/A 62 ~ 72

62 ~ 72

12.4 x 22.0

195.0

2000/6000

300/ 1000

GYTC8S/A 74 ~ 96

74 ~ 96

13.1 x 22.7

222.0

2000/6000

300/ 1000

GYTC8S/A 98~ 120

98~ 120

15.7 x 22.3

238.0

2000/6000

300/ 1000

GYTC8S/A 122~ 144

122~ 144

15.5 x 25.1

273.0

2000/6000

300/ 1000

MORE

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.

2. The dimensions and raw materials can be designed according to the demand of the customers.

3. Standard Reel Length: 3000m/reel: other lengths available on request.

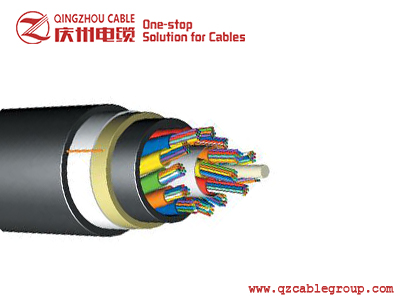

Direct Buried Armored Fiber Optic Cable GYFTY53

Description:

Armoured Direct Buried fiber optic cable comes with a Fiberglass Reinforced plastic (FRP) central strength member,containing maximum up to 24 water blocking gel filled tubes and each tube contains up to maximum 12 fibers.The cable jacket incorporates a water blocking tape,PE inner jacket,a layer of corrugated steel tape armour and PE jackets preventing any water penetration.The corrugated steel tape armouring provides additional mechanical protection &100% rodent proof thus making it suitable for direct burial &harsh environment installations.

Direct Buried Armored Fiber Optic Cable Technical Data

Cable Type

Fiber Count

Tubes

Fillers

Cable Diamete
mm

Cable Weight kg/km

Tensile Strength Long/Short Term N

Crush Resistance Long/Short Term N/100mm

GYFTY53-2~6

2~6

1

7

15.8

230

1000/3000

1000/3000

GYFTY53-8~12

8~12

2

6

15.8

230

1000/3000

1000/3000

GYFTY53-14~18

14~18

3

5

15.8

230

1000/3000

1000/3000

GYFTY53-20~24

20~24

4

4

15.8

230

1000/3000

1000/3000

GYFTY53-26~30

26~30

5

3

15.8

230

1000/3000

1000/3000

GYFTY53-32~36

32~36

6

2

15.8

230

1000/3000

1000/3000

GYFTY53-38~42

38~42

7

1

15.8

230

1000/3000

1000/3000

GYFTY53-44~48

44~48

8

0

15.8

230

1000/3000

1000/3000

MORE

Note:

1. Only a part of GYFTY53 fiber cable are listed in the table. More can be produce as required .

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Duct Steel Tape Dry Core Fiber Optic Cable GYTS/GYTA

Description

Armoured loose tube fiber optic cable contain maximum up to 24 water blocking gel filled tubes with a maximum 12 fibers each.This cable comprises of a water blocking tape,a layer of corrugated steel tape armouring and PE outer jacket.The corrugated steel tape armouring provides mechanical and rodent protection to the cable.

Application:

1.Adopted to Outdoor distribution.

2.Suitable for aerial pipeline laying method.

3.Long distance and local area network communication.

Duct Steel Tape Dry Core Fiber Optic Cable

Cable
Count

Out
sheath
Dia.

Weight

Minimum
allowable TensileStrength
(N)

Minimum
allowable
Crush Load
(N/100nm)

Minimum
Bending
Radius(MM)

Storage
Temperature

(MM)

(kg)

Short term

Long term

Short term

Long term

Short term

Long term

(°C)

24

10.5

105

1500

600

1000

300

20D

10D

-40+60

36

10.5

105

1500

600

1000

300

20D

10D

-40+60

42

10.5

105

1500

600

1000

300

20D

10D

-40+60

48

10.5

105

1500

600

1000

300

20D

10D

-40+60

60

10.5

105

1500

600

1000

300

20D

10D

-40+60

72

13.5

208

1500

600

1000

300

20D

10D

-40+60

96

13.5

208

1500

600

1000

300

20D

10D

-40+60

144

15.5

295

1500

600

1000

300

20D

10D

-40+60

MORE

Note:

1. Only a part of GYTS fiber cable are listed in the table. More can be produce as required .

2. Cables can be supplied with a range of single mode or multimode fibers.

3. Specially designed Cable structure is available on request.

Non armoured Loose Tube Fiber Optic Cable GYFTY

Description:

Non armoured loose tube fiber optic cable that comes with a Fiberglass Reinforced plastic (FRP) central strength member which can contain up to a maximum up to 24 water blocking gel filled tubes.Each tube can contain up to maximum 12 fibers.This cable comes with a layer of water blocking tape to prevent water penetration and PE outer jacket.

Application: Duct/Aerial

Non armoured Loose Tube Fiber Optic Cable

Cable Type             (Increased by 2fibers)

Fiber Count

Tubes

Fillers

Cable Diameter mm

Cable Weight kg/km

Tensile Strength Long/Short Term N

Crush Resistance Long/Short Term N/100mm

Bending Radius Static/Dynamic mm

GYFTY 2 ~ 6

2 ~ 6

1

4

11.0

97

600/1500

300/1000

10D/20D

GYFTY 8 ~ 12

8 ~ 12

2

3

11.0

97

600/1500

300/1000

10D/20D

GYFTY 14 ~18

14 ~18

3

2

11.0

97

600/1500

300/1000

10D/20D

GYFTY 20 ~ 24

20 ~ 24

4

1

11.0

97

600/1500

300/1000

10D/20D

GYFTY 26 ~ 30

26 ~ 30

4

1

11.0

97

600/1500

300/1000

10D/20D

GYFTY 32 ~ 36

 32 ~ 36

6

0

11.0

97

600/1500

300/1000

10D/20D

MORE

Note:

1.Cables can be supplied with a range of single mode or multimode fibers.

2. The dimensions and raw materials can be designed according to the demand of the customers.

3. Standard Reel Length: 3000m/reel: other lengths available on request.
