Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

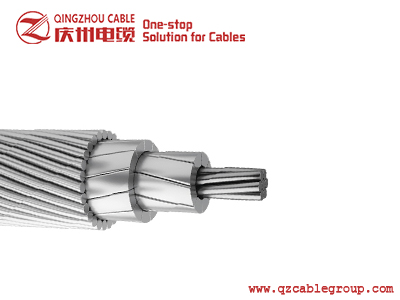

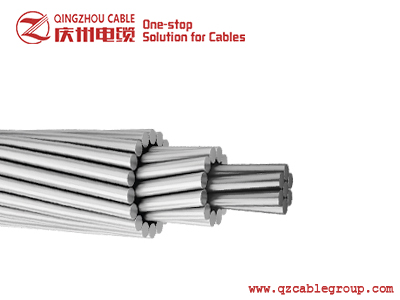

TACSR TACSR/AW CONDUCTOR


TACSR (/AW) is used for overhead electric power transmission lines. Big city, seaside district, moisture area etc



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Application:

TACSR (/AW) is used for overhead electric power transmission lines. Big city, seaside  TACSR TACSR/AW CONDUCTOR district, moisture area etc.

Standard:

IEC, ASTM, JEC 3406

Construction:

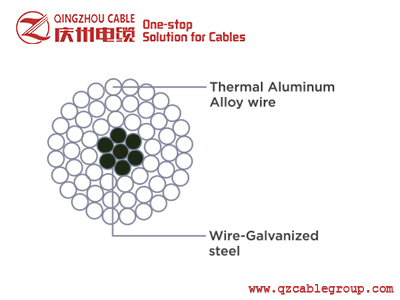

Core(St, AW): Zinc-coated Steel Wire / Aluminum-clad Steel Wire(AW) : 14% ~ 40% AW

Conductor(TAI) : Thermal Resistant Aluminum HIGH TEMPERATURE CONDUCTOR  Alloy Wire used for continuously allowable temperature up to 150oC

Characteristics

AW Type has excellent rustless characteristics.

LS Cable & System Standard (60% IACS)

TACSR

Conductor Size   (mm2) Stranding (Nos./mm) Min. Breaking Load (kgf) Reference
Cross-sectional Area (mm2) Overall Diameter (mm) Weight (kg/km) DC Resistance at 20℃ (Ω/km) Modulus of   Elasticity (kgf/mm2) Coefficient of Linear Expansion (10-6/℃) Standard Length   (m) Current Carrying Capacity (A)
TAl ST TAl ST Total TAl ST TAl ST Total
58 6/3.5 1/3.5 1,980 57.73 9.621 67.35 10.5 3.5 158.1 75.04 233.1 0.505 8,400 18.9 1,000 343
80 6/4.2 1/4.2 2,770 83.10 13.85 96.95 12.6 4.2 227.5 108.0 335.5 0.350 8,400 18.9 1,000 430
95 6/4.5 1/4.5 3,810 95.40 15.90 111.3 13.5 4.5 261.2 124.0 385.2 0.306 8,400 18.9 1,000 478
80 15/2.6 4/2.6 4,720 79.64 21.24 100.9 13.0 7.8 219.2 166.5 385.7 0.368 9,390 17.6 2,000 448
100 15/2.9 4/2.9 5,580 99.08 26.42 125.5 14.5 8.7 272.8 207.1 479.9 0.296 9,390 17.6 2,000 517
120 15/3.2 4/3.2 5,550 120.6 32.17 152.8 16.0 9.6 332.2 252.2 584.4 0.243 9,390 17.6 2,000 590
120 30/2.3 7/2.3 5,540 124.7 29.09 153.8 16.1 6.9 345.7 228.0 573.7 0.237 9,080 18.0 2,000 598
160 30/2.6 7/2.6 6,980 159.3 37.16 196.5 18.2 7.8 441.5 291.3 732.8 0.185 9,080 18.0 2,000 706
200 30/2.9 7/2.9 8,640 198.2 46.24 244.4 20.3 8.7 549.3 362.4 911.7 0.149 9,080 18.0 2,000 816
240 30/3.2 7/3.2 10,210 241.3 56.29 297.6 22.4 9.6 668.9 441.3 1,110 0.122 9,080 18.0 2,000 932
330 26/4.0 7/3.1 10,950 326.8 52.84 379.6 25.3 9.3 905.4 414.2 1,320 0.0904 8,360 19.0 2,000 1,128
410 26/4.5 7/3.5 13,910 413.4 67.35 480.8 28.5 10.5 1,145 527.9 1,673 0.0714 8,360 19.0 2,000 1,322
480 45/3.7 7/2.47 11,260 483.8 33.54 517.34 29.6 7.41 1336.1 262.9 1,599 0.0610 7,250 20.8 2,000 1,425
520 54/3.5 7/3.5 15,600 519.5 67.35 586.9 31.5 10.5 1,441 527.9 1,969 0.0569 7,990 19.5 1,600 1,504
610 54/3.8 7/3.8 18,350 612.4 79.38 691.8 34.2 11.4 1,698 622.2 2,320 0.0481 7,990 19.5 1,600 1,682
680 54/4.0 7/4.0 19,810 678.8 87.99 766.8 36.0 12.0 1,882 689.8 2,572 0.0436 7,990 19.5 1,600 1,797
680 45/4.4 7/2.9 15,580 684.5 46.24 730.7 35.1 8.7 1,898 362.4 2,260 0.0431 7,250 20.8 1,600 1,787
810 45/4.8 7/3.2 18,480 814.5 56.29 870.8 38.4 9.6 2,259 441.3 2,700 0.0363 7,250 20.8 1,600 2,004
1,160 84/4.2 7/4.2 27,830 1.163 96.95 1,260 46.2 12.6 3,236 759.8 3,996 0.0254 7,430 20.5 1,200 2,573
1,520 84/4.8 7/4.8 36,390 1.520 126.7 1,647 52.8 14.4 4,228 993.3 5,222 0.0195 7,430 20.5 1,200 3,035
MORE

TACSR/AW (20.3% Conductivity AW)

Conductor Size   (mm2) Stranding (Nos./mm) Min. Breaking Load (kgf) Reference
Cross-sectional Area (mm2) Overall Diameter (mm) Weight   (kg/km) DC Resistance at 20℃ (Ω/km) Modulus of   Elasticity (kgf/mm2) Coefficient of Linear Expansion (10-6/℃) Standard Length   (m) Current Carrying Capacity (A)
TAl AW TAl AW TAl AW
120 30/2.3 7/2.3 5,540 124.7 29.08 16.1 6.9 536.5 0.219 8,100 19.2 2,000 624
160 30/2.6 7/2.6 6,980 159.3 37.16 18.2 7.8 685.4 0.171 8,100 19.2 2,000 734
200 30/2.9 7/2.9 8,640 198.2 46.24 20.3 8.7 852.8 0.138 8,100 19.2 2,000 847
210 30/3.2 7/3.2 10,160 241.3 56.29 22.4 9.6 1,038 0.113 8,100 19.2 2,000 968
330 26/4.0 7/3.1 11,200 326.8 52.84 25.3 9.3 1,252 0.0856 7,620 20.0 2,000 1,159
410 26/4.5 7/3.5 14,230 413.4 67.35 28.5 10.5 1,587 0.0676 7,630 20.0 2,000 1,358
480 45/3.7 7/2.47 11,260 483.84 33.54 29.6 7.4 1,561 0.0595 6,910 21.5 2,000 1,437
520 54/3.5 7/3.5 15,920 519.5 67.35 31.5 10.5 1,883 0.0544 7,390 20.4 1,600 1,537
610 54/3.8 7/3.8 18,730 612.4 79.38 34.2 11.4 2,219 0.0461 7,330 20.4 1,600 1,717
680 45/4.4 7/2.9 15,580 684.5 46.24 35.1 8.7 2,201 0.0422 6,900 21.5 1,600 1,805
810 45/4.8 7/3.2 18,730 814.5 56.29 38.4 9.6 2,628 0.0354 6,910 21.5 1,600 2,028
950 84/3.8 7/3.8 23,780 952.6 79.38 41.8 11.4 3,170 0.0302 7,030 21.2 1,200 2,292
1,160 84/4.2 7/4.2 28,720 1,163 96.95 46.2 12.6 3,872 0.0247 7,030 21.2 1,200 2,606
1,520 84/4.8 7/4.8 37,520 1,520 126.7 52.8 14.4 5,060 0.0189 7,030 21.2 1,200 3,075
MORE

TACSR/AW (23% Conductivity AW)

Conductor Size   (mm2) Stranding (Nos./mm) Min. Breaking Load (kgf) Reference
Cross-Sectional Area (mm2) Overall Diameter (mm) Weight   (kg/km) DC Resistance at 20   ( /km) Modulus of    Elasticity (kgf/mm2) Coefficient of Linear Expansion (10-6/ ) Standard Length   (m) Current Carrying Capacity (A)
TAL AW TAL AW TAL AW
120 30/2.3 7/2.3 5,410 124.7 29.08 16.1 6.9 528.9 0.217 7,980 19.4 2,000 625
160 30/2.6 7/2.6 6,810 159.3 37.16 18.2 7.8 675.7 0.170 7,980 19.4 2,000 736
200 30/2.9 7/2.9 8,440 198.2 46.24 20.3 8.7 840.7 0.136 7,980 19.4 2,000 854
210 30/3.2 7/3.2 10,210 241.3 56.29 22.4 9.6 1,024 0.112 7,980 19.4 2,000 973
330 26/4.0 7/3.1 10,950 326.8 52.84 25.3 9.3 1,238 0.085 7,540 20.2 2,000 1,163
410 26/4.5 7/3.5 13,910 413.4 67.35 28.5 10.5 1,570 0.0671 7,550 20.2 2,000 1,363
480 45/3.7 7/2.47 11,110 483.84 33.54 29.6 7.4 1,550 0.0592 6,880 20.6 2,000 1,441
520 54/3.5 7/3.5 15,600 519.5 67.35 31.5 10.5 1,865 0.0541 7,330 20.6 1,600 1,541
610 54/3.8 7/3.8 18,350 612.4 79.38 34.2 11.4 2,198 0.0458 7,320 20.6 1,600 1,722
680 45/4.4 7/2.9 15,600 684.5 46.24 35.1 8.7 2,189 0.0420 6,860 21.6 1,600 1,809
810 45/4.8 7/3.2 18,480 814.5 56.29 38.4 9.6 2,613 0.0353 6,880 21.6 1,600 2,031
950 84/3.8 7/3.8 23,100 952.6 79.38 41.8 11.4 3,149 0.0300 6,980 21.3 1,200 2,299
1,160 84/4.2 7/4.2 28,270 1,163 96.95 46.2 12.6 3,847 0.0246 6,980 21.3 1,200 2,611
1,520 84/4.8 7/4.8 36,960 1,520 126.7 52.8 14.4 5,027 0.0189 6,980 21.3 1,200 3,075
MORE

留言

请填写你想要知道的信息!我们将在5分钟内回复您!
