0.6/1 kV Control cables, PVC insulated with copper conductor


Control cables are normally used for connecting signaling and control units in industry, in railways, in traffic signals, in power or switching stations



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

0.6/1 kV Control cables, PVC insulated with copper conductor

APPLICATIONS

These cables are intended for fixed installations, indoors and outdoors, in low voltage control systems. They are normally used for connecting signaling and control units in industry, in railways, in traffic signals, in power or switching stations, as well as in switchgears, in applications where there is no risk of mechanical damage.

APPLICABLE STANDARDS

Low Voltage control cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition, can also supply a range of alternative designs to meet customer-specified requirements.

CABLE CONSTRUCTION

Conductor

Plain annealed stranded circular copper conductor (Class 2 to IEC 60228).

Insulation

Extruded layer of Polyvinyl Chloride (PVC) – Type (PVC/A) to IEC 60502-1.

Assembly

Cores are assembled together using Non-hygroscopic filler, if needed.

Outer Jacket

Extruded layer of Polyvinyl Chloride (PVC) – Type (ST1) to IEC 60502-1.

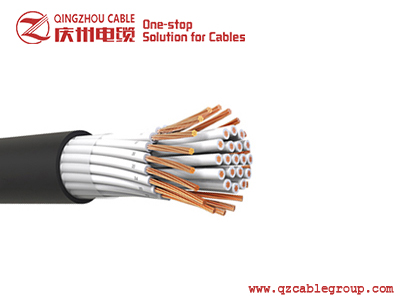

0.6/1 kV CU/PVC/PVC Control cables, PVC insulated, unarmoured with copper conductor IEC 60502-1

No. of cores X Nominal

cross sectional area

ELECTRICAL DATA

DIMENSIONS AND WEIGHTS

Max. Conductor Resistance

Continuous Current Ratings

Approx. overall diameter

Approx. overall weight

DC at 20 °C

AC at 70 °C

Laid in ground

Laid in ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km

1.5 mm2

2 X 1.5

12.1000

14.4777

27

19

21

9.9

145

3 X 1.5

12.1000

14.4777

23

15

18

10.4

170

4 X 1.5

12.1000

14.4777

23

15

18

11.3

205

5 X 1.5

12.1000

14.4777

17

12

14

12.6

220

7 X 1.5

12.1000

14.4777

15

10

12

13.7

275

10 X 1.5

12.1000

14.4777

13

9

11

16.9

375

12 X 1.5

12.1000

14.4777

12

8

10

17.4

425

14 X 1.5

12.1000

14.4777

11

8

10

18.2

480

16 X 1.5

12.1000

14.4777

11

8

10

19.4

545

19 X 1.5

12.1000

14.4777

10

7

9

20.4

620

24 X 1.5

12.1000

14.4777

9

7

9

23.6

765

30 X 1.5

12.1000

14.4777

8

6

8

24.9

920

37 X 1.5

12.1000

14.4777

7

6

7

27.1

1105

40 X 1.5

12.1000

14.4777

7

5

7

28.2

1195

48 X 1.5

12.1000

14.4777

7

5

7

31.0

1410

2.5 mm2

2 X 2.5

7.4100

8.8661

36

24

28

10.8

185

3 X 2.5

7.4100

8.8661

29

20

23

11.4

220

4 X 2.5

7.4100

8.8661

29

20

23

12.3

265

5 X 2.5

7.4100

8.8661

22

15

18

13.9

290

7 X 2.5

7.4100

8.8661

19

13

16

14.9

360

10 X 2.5

7.4100

8.8661

17

12

15

18.5

495

12 X 2.5

7.4100

8.8661

16

11

14

19.1

570

14 X 2.5

7.4100

8.8661

15

10

13

20.0

645

16 X 2.5

7.4100

8.8661

14

10

13

21.3

735

19 X 2.5

7.4100

8.8661

13

9

12

22.4

840

24 X 2.5

7.4100

8.8661

12

9

11

26.0

1045

30 X 2.5

7.4100

8.8661

11

8

10

27.5

1260

37 X 2.5

7.4100

8.8661

10

7

10

29.9

1525

40 X 2.5

7.4100

8.8661

9

7

10

31.3

1660

48 X 2.5

7.4100

8.8661

9

7

9

34.5

1975

4.0 mm2

2 X 4.0

4.6100

5.5159

47

32

38

12.7

260

3 X 4.0

4.6100

5.5159

38

26

32

13.4

315

4 X 4.0

4.6100

5.5159

38

26

32

14.6

385

5 X 4.0

4.6100

5.5159

29

21

25

16.4

420

7 X 4.0

4.6100

5.5159

25

18

22

17.9

535

10 X 4.0

4.6100

5.5159

22

16

20

22.5

740

12 X 4.0

4.6100

5.5159

20

15

19

23.2

860

14 X 4.0

4.6100

5.5159

19

14

18

24.4

980

16 X 4.0

4.6100

5.5159

18

13

17

26.0

1120

19 X 4.0

4.6100

5.5159

17

12

16

27.4

1285

24 X 4.0

4.6100

5.5159

15

12

16

32.2

1620

30 X 4.0

4.6100

5.5159

14

11

14

34.3

1990

37 X 4.0

4.6100

5.5159

13

10

13

37.5

2430

40 X 4.0

4.6100

5.5159

12

9

13

39.0

2620

48 X 4.0

4.6100

5.5159

11

9

13

43.0

3115

MORE

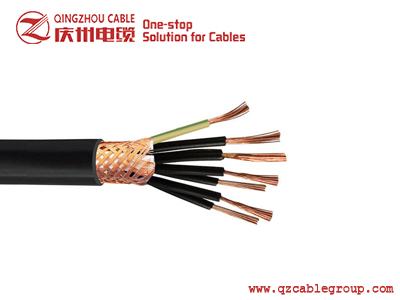

0.6/1 kV CU/ PVC/CT SHIELDED/PVC Control cables, PVC insulated, copper tape shielded with copper conductor IEC 60502-1

No. of cores X Nominal

cross sectional area

ELECTRICAL DATA

DIMENSIONS AND WEIGHTS

Max. Conductor Resistance

Continuous Current Ratings

Approx. overall diameter

Approx. overall weight

DC at 20 °C

AC at 70 °C

Laid in ground

Laid in ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km

1.5 mm2

2 X 1.5

12.1000

14.4777

27

19

22

12.2

225

3 X 1.5

12.1000

14.4777

22

15

18

12.8

255

4 X 1.5

12.1000

14.4777

22

15

18

13.6

290

5 X 1.5

12.1000

14.4777

16

12

14

15.0

315

7 X 1.5

12.1000

14.4777

14

10

12

16.0

380

10 X 1.5

12.1000

14.4777

13

9

11

19.2

500

12 X 1.5

12.1000

14.4777

12

9

10

19.7

555

14 X 1.5

12.1000

14.4777

11

8

10

20.5

615

16 X 1.5

12.1000

14.4777

10

8

9

21.7

690

19 X 1.5

12.1000

14.4777

10

7

9

22.7

770

24 X 1.5

12.1000

14.4777

9

7

8

25.9

940

30 X 1.5

12.1000

14.4777

8

6

8

27.2

1105

37 X 1.5

12.1000

14.4777

7

5

7

29.4

1305

40 X 1.5

12.1000

14.4777

7

5

7

30.5

1405

48 X 1.5

12.1000

14.4777

7

5

7

33.3

1645

2.5 mm2

2 X 2.5

7.4100

8.8661

35

25

29

13.1

270

3 X 2.5

7.4100

8.8661

29

20

24

13.7

310

4 X 2.5

7.4100

8.8661

29

20

24

14.7

360

5 X 2.5

7.4100

8.8661

21

16

18

16.1

385

7 X 2.5

7.4100

8.8661

19

14

16

17.2

475

10 X 2.5

7.4100

8.8661

16

12

15

20.8

635

12 X 2.5

7.4100

8.8661

15

11

14

21.4

715

14 X 2.5

7.4100

8.8661

14

10

13

22.3

795

16 X 2.5

7.4100

8.8661

13

10

13

23.6

895

19 X 2.5

7.4100

8.8661

12

9

12

24.7

1005

24 X 2.5

7.4100

8.8661

11

9

11

28.3

1245

30 X 2.5

7.4100

8.8661

10

8

10

29.8

1465

37 X 2.5

7.4100

8.8661

9

7

10

32.4

1765

40 X 2.5

7.4100

8.8661

9

7

9

33.6

1895

48 X 2.5

7.4100

8.8661

8

7

9

37.2

2265

4.0 mm2

2 X 4.0

4.6100

5.5159

45

33

39

15.0

360

3 X 4.0

4.6100

5.5159

37

27

32

15.8

420

4 X 4.0

4.6100

5.5159

37

27

32

16.9

500

5 X 4.0

4.6100

5.5159

28

21

25

18.8

535

7 X 4.0

4.6100

5.5159

24

18

22

20.2

670

10 X 4.0

4.6100

5.5159

21

16

20

24.8

910

12 X 4.0

4.6100

5.5159

20

15

19

25.5

1035

14 X 4.0

4.6100

5.5159

19

14

18

26.7

1165

16 X 4.0

4.6100

5.5159

18

13

17

28.3

1315

19 X 4.0

4.6100

5.5159

16

12

16

29.7

1490

24 X 4.0

4.6100

5.5159

15

12

15

34.9

1895

30 X 4.0

4.6100

5.5159

13

11

14

37.0

2280

37 X 4.0

4.6100

5.5159

12

10

13

39.5

2695

40 X 4.0

4.6100

5.5159

12

9

13

41.7

2950

48 X 4.0

4.6100

5.5159

11

9

12

45.9

3500

MORE

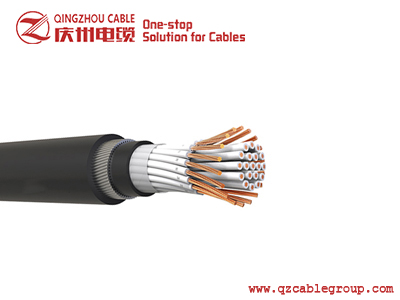

0.6/1 kV CU/PVC/SWA/PVC Control cables, PVC insulated, wire armoured with copper conductor IEC 60502-1

No. of cores X Nominal

cross sectional area

ELECTRICAL DATA

DIMENSIONS AND WEIGHTS

Max. Conductor Resistance

Continuous Current Ratings

Approx. overall diameter

Approx. overall weight

DC at 20 °C

AC at 70 °C

Laid in ground

Laid in ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km

1.5 mm2

2 X 1.5

12.1000

14.4777

27

20

23

13.5

365

3 X 1.5

12.1000

14.4777

22

16

19

14.0

400

4 X 1.5

12.1000

14.4777

22

16

19

14.9

450

5 X 1.5

12.1000

14.4777

17

12

14

16.2

495

7 X 1.5

12.1000

14.4777

15

11

13

17.3

575

10 X 1.5

12.1000

14.4777

13

10

12

21.9

870

12 X 1.5

12.1000

14.4777

12

9

11

22.4

945

14 X 1.5

12.1000

14.4777

11

8

10

23.2

1015

16 X 1.5

12.1000

14.4777

10

8

10

24.4

1115

19 X 1.5

12.1000

14.4777

10

7

9

26.1

1365

24 X 1.5

12.1000

14.4777

9

7

9

29.3

1630

30 X 1.5

12.1000

14.4777

8

6

8

30.6

1820

37 X 1.5

12.1000

14.4777

7

6

7

33.0

2105

40 X 1.5

12.1000

14.4777

7

6

7

34.1

2235

48 X 1.5

12.1000

14.4777

7

5

7

37.2

2830

2.5 mm2

2 X 2.5

7.4100

8.8661

35

25

30

14.4

420

3 X 2.5

7.4100

8.8661

29

21

25

15.0

470

4 X 2.5

7.4100

8.8661

29

21

25

15.9

530

5 X 2.5

7.4100

8.8661

22

16

19

17.5

590

7 X 2.5

7.4100

8.8661

19

14

17

19.9

805

10 X 2.5

7.4100

8.8661

17

12

15

23.5

1045

12 X 2.5

7.4100

8.8661

15

12

14

24.1

1130

14 X 2.5

7.4100

8.8661

14

11

14

25.7

1375

16 X 2.5

7.4100

8.8661

14

10

13

27.0

1520

19 X 2.5

7.4100

8.8661

13

10

12

28.1

1665

24 X 2.5

7.4100

8.8661

12

9

12

31.9

2005

30 X 2.5

7.4100

8.8661

10

8

11

33.4

2280

37 X 2.5

7.4100

8.8661

10

7

10

36.0

2645

40 X 2.5

7.4100

8.8661

9

7

10

37.5

3110

48 X 2.5

7.4100

8.8661

9

7

9

41.1

3585

4.0 mm2

2 X 4.0

4.6100

5.5159

46

34

40

16.3

535

3 X 4.0

4.6100

5.5159

38

27

34

17.9

725

4 X 4.0

4.6100

5.5159

38

27

34

19.1

820

5 X 4.0

4.6100

5.5159

28

21

26

20.9

905

7 X 4.0

4.6100

5.5159

25

19

23

22.9

1070

10 X 4.0

4.6100

5.5159

22

17

21

28.2

1570

12 X 4.0

4.6100

5.5159

20

15

20

28.9

1705

14 X 4.0

4.6100

5.5159

19

14

19

30.1

1870

16 X 4.0

4.6100

5.5159

18

14

18

31.7

2065

19 X 4.0

4.6100

5.5159

17

13

17

33.3

2290

24 X 4.0

4.6100

5.5159

15

12

16

39.0

3155

30 X 4.0

4.6100

5.5159

14

11

14

40.9

3600

37 X 4.0

4.6100

5.5159

12

10

13

43.4

4100

40 X 4.0

4.6100

5.5159

12

10

13

45.8

4450

48 X 4.0

4.6100

5.5159

11

9

12

50.0

5475

MORE

留言

请填写你想要知道的信息!我们将在5分钟内回复您!
