APPLICATION:

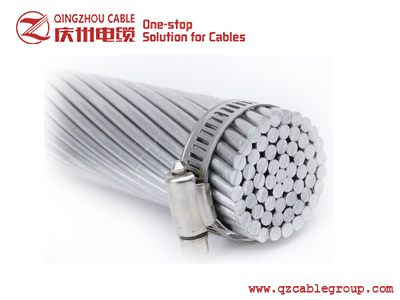

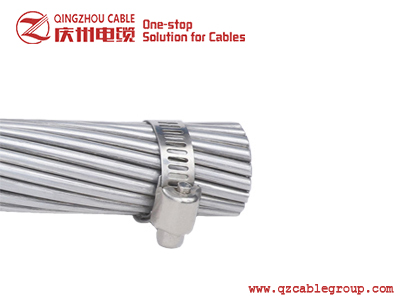

AAC – All Aluminum Conductor is for stranded 1350 aluminum conductors and is primarily used for overhead transmission and distribution services, where strength of standard ACSR cables is not required. Class AA for bare conductors used in overhead lines. Class A for conductors to be covered with weather- resistant materials and for bare conductors where greater flexibility is required.
CONDUCTORS

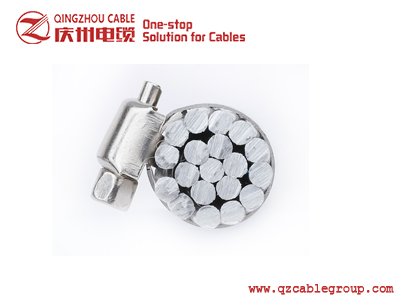

Concentric lay stranded conductor consisting of Aluminum Alloy 1350-H19 wires. AAC is available in both single layer and multi-layer constructions.
STANDARDS:
1.American Standard&Canadian national standards——ASTM B-230 ASTM B-231 CSA C49
2.British Standards——BS EN 50182/BS 215
3.German Standards——DIN 48201-5
4.International Electrotechnical Commission International Standards&China national standards——IEC 61089 GB/T 1179
5.Australian/New Zealand Standards——AS/NZS 1531-91
6.Russian National Standard——GOST 839-80
American Standard&Canadian national standards——ASTM B-230 ASTM B-231 CSA C49
Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
AWG&MCM | mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A | |
Peachbell | 6 | 13.3 | 7/1.56 | 4.68 | 36.6 | 2.53 | 2.1477 | 75 |
Rose | 4 | 21.1 | 7/1.96 | 5.88 | 58.2 | 3.91 | 1.3606 | 99 |
Iris | 2 | 33.6 | 7/2.47 | 7.41 | 92.6 | 5.99 | 0.8567 | 132 |
Pansy | 1 | 42.4 | 7/2.78 | 8.34 | 116.6 | 7.3 | 0.6763 | 153 |
Poppy | 1/0 | 53.5 | 7/3.12 | 9.36 | 147.2 | 8.84 | 0.5369 | 176 |
Aster | 2/0 | 67.4 | 7/3.50 | 10.5 | 185.7 | 11.1 | 0.4267 | 203 |
Phlox | 3/0 | 85 | 7/3.93 | 11.79 | 233.9 | 13.5 | 0.3384 | 234 |
Oxlip | 4/0 | 107.2 | 7/4.42 | 13.26 | 295.2 | 17 | 0.2675 | 270 |
Valerian | 250 | 126.7 | 19/2.91 | 14.55 | 348.6 | 20.7 | 0.2274 | 299 |
Sneezewort | 250 | 126.7 | 7/4.80 | 14.4 | 348.8 | 20.1 | 0.2269 | 299 |
Laurel | 266.8 | 135.2 | 19/3.01 | 15.05 | 372.2 | 22.1 | 0.2125 | 312 |
Daisy | 266.8 | 135.2 | 7/4.96 | 14.88 | 372.3 | 21.4 | 0.2125 | 311 |
Peony | 300 | 152 | 19/3.19 | 15.95 | 418.3 | 24.3 | 0.1892 | 335 |
Tulip | 336.4 | 170.5 | 19/3.38 | 16.9 | 469.5 | 27.3 | 0.1686 | 359 |
Daffodil | 350 | 177.3 | 19/3.45 | 17.25 | 487.9 | 28.4 | 0.1618 | 369 |
Canna | 397.5 | 201.4 | 19/3.67 | 18.35 | 554.9 | 31.6 | 0.143 | 397 |
Goldentuft | 450 | 228 | 19/3.91 | 19.55 | 627.6 | 35 | 0.126 | 429 |
Syringa | 477 | 241.7 | 37/2.88 | 20.16 | 664.8 | 38.6 | 0.1192 | 444 |
Cosmos | 477 | 241.7 | 19/4.02 | 20.1 | 664.8 | 37 | 0.1192 | 444 |
Hyacinth | 500 | 253.3 | 37/2.95 | 20.65 | 696.8 | 40.5 | 0.1136 | 458 |
Zinnia | 500 | 253.3 | 19/4.12 | 20.6 | 697.1 | 38.9 | 0.1134 | 458 |
Dahlia | 556.5 | 282 | 19/4.35 | 21.75 | 775.8 | 43.3 | 0.1018 | 489 |
Mistletoe | 556.5 | 282 | 37/3.12 | 21.84 | 775.7 | 44.3 | 0.1016 | 490 |
Meadowsweet | 600 | 304 | 37/3.23 | 22.61 | 836.3 | 47.5 | 0.0948 | 511 |
Orchid | 636 | 322.3 | 37/3.33 | 23.31 | 886.9 | 50.4 | 0.0892 | 530 |
Heuchera | 650 | 329.4 | 37/3.37 | 23.59 | 907.4 | 51.7 | 0.0871 | 538 |
Flag | 700 | 354.7 | 61/2.72 | 24.48 | 975.8 | 57.1 | 0.0811 | 561 |
Varbena | 700 | 354.7 | 37/3.49 | 24.43 | 975.7 | 55.4 | 0.0812 | 561 |
Nasturtium | 715.5 | 362.6 | 61/2.75 | 24.75 | 998.5 | 58.4 | 0.0793 | 569 |
Violet | 715.5 | 362.6 | 37/3.53 | 24.71 | 998.5 | 56.7 | 0.0794 | 568 |
Cattail | 750 | 380 | 61/2.82 | 25.38 | 1046 | 60.3 | 0.0754 | 587 |
Petunia | 750 | 380 | 37/3.62 | 25.34 | 1046 | 58.6 | 0.0755 | 586 |
Lilac | 795 | 402.8 | 61/2.90 | 26.1 | 1110 | 63.8 | 0.0713 | 607 |
Arbutus | 795 | 402.8 | 37/3.72 | 26.04 | 1109 | 61.8 | 0.0715 | 605 |
Snapdragon | 900 | 456 | 61/3.09 | 27.81 | 1256 | 70.8 | 0.0628 | 654 |
Cockscomb | 900 | 456 | 37/3.96 | 27.72 | 1256 | 68.4 | 0.0631 | 652 |
Goldenrod | 954 | 483.4 | 61/3.18 | 28.62 | 1331 | 75 | 0.0593 | 677 |
Magnolia | 954 | 483.4 | 37/4.08 | 28.56 | 1331 | 72.6 | 0.0594 | 676 |
Camellia | 1000 | 506.7 | 61/3.25 | 29.25 | 1394 | 78.3 | 0.0568 | 695 |
Hawkweed | 1000 | 506.7 | 37/4.18 | 29.26 | 1395 | 76.2 | 0.0566 | 696 |
Larkspur | 1033.5 | 523.7 | 61/3.31 | 29.79 | 1442 | 81.3 | 0.0547 | 710 |
Bluebell | 1033.5 | 523.7 | 37/4.25 | 29.75 | 1441 | 78.8 | 0.0547 | 710 |
Marigold | 1113 | 564 | 61/3.43 | 30.87 | 1553 | 87.3 | 0.051 | 740 |
Hawthorn | 1192.5 | 604.2 | 61/3.55 | 31.95 | 1662 | 93.5 | 0.0476 | 771 |
Narsissus | 1272 | 644.5 | 61/3.67 | 33.03 | 1774 | 98.1 | 0.0445 | 802 |
Columbine | 1351 | 694.8 | 61/3.78 | 34.02 | 1884 | 104 | 0.042 | 829 |
Carnation | 1431 | 725.1 | 61/3.89 | 35.01 | 1997 | 108 | 0.0396 | 858 |
Gladiolus | 1510.5 | 765.4 | 61/4.00 | 36 | 2108 | 114 | 0.0375 | 885 |
Coreopsis | 1590 | 805.7 | 61/4.10 | 36.9 | 2216 | 120 | 0.0357 | 911 |
Jassamine | 1750 | 886.7 | 61/4.30 | 38.7 | 2442 | 132 | 0.0324 | 962 |
Cowslip | 2000 | 1013 | 91/3.77 | 41.47 | 2787 | 153 | 0.0286 | 1032 |
Sagebrush | 2250 | 1140 | 91/3.99 | 43.89 | 3166 | 167 | 0.0255 | 1099 |
Lupine | 2500 | 1267 | 91/4.21 | 46.31 | 3519 | 186 | 0.0229 | 1163 |
Bitterrot | 2750 | 1393 | 91/4.42 | 48.62 | 3872 | 205 | 0.0208 | 1223 |
Trillium | 3000 | 1520 | 127/3.90 | 50.7 | 4226 | 223 | 0.0193 | 1271 |
Bluebonnet | 3500 | 1773 | 127/4.22 | 54.86 | 4977 | 261 | 0.0165 | 1373 |
British Standards——BS EN 50182/BS 215
Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
Nominal | Teorical | |||||||
mm^2 | mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A | |
Midge | 22 | 23.33 | 7/2.06 | 6.18 | 64 | 3.99 | 1.227 | 106 |
Gnat | 25 | 26.8 | 7/2.21 | 6.6 | 73.8 | 4.83 | 1.0643 | 122 |
Mosquito | 35 | 37.0 | 7/2.59 | 7.8 | 102.1 | 6.27 | 0.7749 | 141 |
Ladybird | 40 | 42.8 | 7/2.79 | 8.4 | 117.9 | 7.28 | 0.6678 | 157 |
Ant | 50 | 52.83 | 7/3.10 | 9.3 | 145 | 8.28 | 0.5419 | 175 |
Fly | 60 | 63.55 | 7/3.40 | 10.2 | 174 | 9.9 | 0.4505 | 196 |
Bluebottle | 70 | 73.7 | 7/3.66 | 11.0 | 202 | 11.34 | 0.3881 | 215 |
Earwing | 75 | 78.5 | 7/3.78 | 11.4 | 215 | 11.94 | 0.3644 | 232 |
Grasshopper | 80 | 84.1 | 7/3.91 | 11.7 | 230 | 12.78 | 0.3406 | 249 |
Clegg | 90 | 95.6 | 7/4.17 | 12.5 | 262 | 14.53 | 0.2944 | 253 |
Wasp | 100 | 106 | 7/4.39 | 13.17 | 290 | 16.00 | 0.2702 | 268 |
Beetle | 100 | 106.0 | 19/2.67 | 13.4 | 293 | 17.42 | 0.2704 | 260 |
Bee | 125 | 132.0 | 7/4.90 | 14.7 | 361 | 19.44 | 0.2169 | 325 |
Cricket | 150 | 157.9 | 7/5.36 | 16.1 | 432 | 23.85 | 0.1818 | 345 |
Hornet | 150 | 157.6 | 19/3.25 | 16.25 | 434 | 25.7 | 0.1825 | 342 |
Caterpillar | 175 | 186 | 19/3.53 | 17.7 | 512 | 28.63 | 0.1547 | 399 |
Chater | 200 | 213.2 | 19/3.78 | 18.9 | 587 | 35.4 | 0.1349 | 412 |
Spider | 225 | 236.9 | 19/3.99 | 20.0 | 652 | 36.01 | 0.1211 | 462 |
Cockroach | 250 | 265.7 | 19/4.22 | 21.1 | 731 | 40.4 | 0.1083 | 471 |
Butterfly | 300 | 322.7 | 19/4.65 | 23.25 | 888 | 48.75 | 0.08916 | 530 |
Moth | 350 | 373.3 | 19/5.00 | 25.0 | 1027 | 56.37 | 0.07711 | 562 |
Drone | 350 | 373.3 | 37/3.58 | 25.1 | 1029 | 57.45 | 0.07741 | 560 |
Locust | 400 | 428.5 | 19/5.36 | 26.8 | 1179 | 64.73 | 0.06710 | 580 |
Centipede | 400 | 415.2 | 37/3.78 | 26.46 | 1145 | 63.1 | 0.06944 | 616 |
Maybug | 475 | 486,1 | 37/4,09 | 28,6 | 1342 | 74.01 | 0,05900 | 740 |
Scorpion | 500 | 529,8 | 37/4,27 | 29,9 | 1460 | 79.98 | 0,05400 | 887 |
Cicada | 600 | 628,3 | 37/4,65 | 32,6 | 1733 | 94.95 | 0,04500 | 1056 |
Tarantula | 750 | 794.6 | 37/5.23 | 36.6 | 2191 | 120.1 | 0.03627 | 1320 |
German Standards——DIN 48201-5
Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* | |
Nominal | Teorical | ||||||
mm^2 | mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A |
16 | 15.89 | 7/1.70 | 5.1 | 43 | 2.84 | 1.8022 | 83 |
25 | 24.25 | 7/2.10 | 6.3 | 66 | 4.17 | 1.181 | 108 |
35 | 34.36 | 7/2.50 | 7.5 | 94 | 5.78 | 0.8333 | 134 |
50 | 49.48 | 7/3.00 | 9 | 135 | 7.94 | 0.5787 | 168 |
50 | 48.35 | 19/1.80 | 9 | 133 | 8.45 | 0.5951 | 166 |
70 | 65.81 | 19/2.10 | 10.5 | 181 | 11.32 | 0.4372 | 200 |
95 | 93.27 | 19/2.50 | 12.5 | 256 | 15.68 | 0.3085 | 248 |
120 | 116.99 | 19/2.80 | 14 | 322 | 18.78 | 0.2459 | 285 |
150 | 147.11 | 37/2.25 | 15.8 | 406 | 25.3 | 0.196 | 328 |
185 | 181.62 | 37/2.50 | 17.5 | 500 | 30.54 | 0.1588 | 373 |
240 | 242.54 | 61/2.25 | 20.3 | 670 | 39.51 | 0.1191 | 445 |
300 | 299.43 | 61/2.50 | 22.5 | 827 | 47.7 | 0.0965 | 506 |
400 | 400.14 | 61/2.89 | 26 | 1104 | 60.86 | 0.0722 | 602 |
500 | 499.83 | 61/3.23 | 29.1 | 1379 | 74.67 | 0.0578 | 688 |
625 | 626.2 | 91/2.96 | 32.6 | 1732 | 95.25 | 0.0462 | 786 |
800 | 802.09 | 91/3.35 | 36.9 | 2218 | 118.39 | 0.036 | 907 |
1000 | 999.71 | 91/3.74 | 41.1 | 2767 | 145.76 | 0.0289 | 1026 |
International Electrotechnical Commission International Standards&China national standards——IEC 61089 GB/T 1179
Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* |
mm^2 | No.×mm | mm | kg/km | KN | Ω/Km | A | |
10 | 10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 | 62 |
16 | 16 | 7/1.71 | 5.13 | 43.8 | 3.04 | 1.7896 | 84 |
25 | 25 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 | 110 |
40 | 40 | 7/2.70 | 8.1 | 109.4 | 6.8 | 0.7158 | 147 |
63 | 63 | 7/3.39 | 10.17 | 172.3 | 10.39 | 0.4545 | 195 |
100 | 100 | 19/2.59 | 12.95 | 274.8 | 17 | 0.2877 | 259 |
125 | 125 | 19/2.89 | 14.45 | 343.6 | 21.25 | 0.2302 | 297 |
160 | 160 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 | 345 |
200 | 200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 | 396 |
250 | 250 | 19/4.09 | 20.45 | 687.1 | 40 | 0.1151 | 454 |
315 | 315 | 37/3.29 | 23.03 | 867.9 | 51.97 | 0.0916 | 522 |
400 | 400 | 37/3.71 | 25.97 | 1102 | 64 | 0.0721 | 603 |
450 | 450 | 37/3.94 | 27.58 | 1239.8 | 72 | 0.0641 | 647 |
500 | 500 | 37/4.15 | 29.05 | 1377.6 | 80 | 0.0577 | 688 |
560 | 560 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 | 736 |
630 | 630 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 | 789 |
710 | 710 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 | 845 |
800 | 800 | 61/4.09 | 36.81 | 2207.4 | 128 | 0.0361 | 905 |
900 | 900 | 61/4.33 | 38.97 | 2483.3 | 144 | 0.0321 | 967 |
1000 | 1000 | 61/4.57 | 41.13 | 2759.2 | 160 | 0.0289 | 1026 |
1120 | 1120 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 | 1091 |
1250 | 1250 | 91/4.18 | 45.98 | 3452.6 | 200 | 0.0231 | 1157 |
1400 | 1400 | 91/4.43 | 48.73 | 3866.9 | 224 | 0.0207 | 1226 |
1500 | 1500 | 91/4.58 | 50.38 | 4143.1 | 240 | 0.0193 | 1270 |
Australian/New Zealand Standards——AS/NZS 1531-91
Conductor codename | Stranding and wire diameter | Nominal overall diameter | Cross- sectional area | Approximate mass | Breaking load | Modulus of elasticity | Coefficient of linear expansion | DC resist. at 20°C | AC resist. at 50Hz |
no/mm | mm | mm2 | kg/km | kN | GPa | x 10–6/°C | Ω/km | Ω/km | |
Leo | 7/2.50 | 7.5 | 34.4 | 94.3 | 5.71 | 65 | 23 | 0.833 | 1.02 |
Leonids | 7/2.75 | 8.25 | 41.6 | 113 | 6.72 | 65 | 23 | 0.689 | 0.842 |
Libra | 7/3.00 | 9 | 49.5 | 135 | 7.98 | 65 | 23 | 0.579 | 0.707 |
Mars | 7/3.75 | 11.3 | 77.3 | 211 | 11.8 | 65 | 23 | 0.37 | 0.452 |
Mercury | 7/4.50 | 13.5 | 111 | 304 | 16.9 | 65 | 23 | 0.258 | 0.315 |
Moon | 7/4.75 | 14.3 | 124 | 339 | 18.9 | 65 | 23 | 0.232 | 0.284 |
Neptune | 19/3.25 | 16.3 | 158 | 433 | 24.7 | 65 | 23 | 0.183 | 0.224 |
Orion | 19/3.50 | 17.5 | 183 | 503 | 28.7 | 65 | 23 | 0.157 | 0.192 |
Pluto | 19/3.75 | 18.8 | 210 | 576 | 31.9 | 65 | 23 | 0.137 | 0.168 |
Saturn | 37/3.00 | 21 | 262 | 721 | 42.2 | 64 | 23 | 0.11 | 0.135 |
Sirius | 37/3.25 | 22.8 | 307 | 845 | 48.2 | 64 | 23 | 0.094 | 0.116 |
Taurus | 19/4.75 | 23.8 | 337 | 924 | 51.3 | 65 | 23 | 0.0857 | 0.105 |
Triton | 37/3.75 | 26.3 | 409 | 1120 | 62.2 | 64 | 23 | 0.0706 | 0.0872 |
Uranus | 61/3.25 | 29.3 | 506 | 1400 | 75.2 | 64 | 23 | 0.0572 | 0.071 |
Ursula | 61/3.50 | 31.5 | 587 | 1620 | 87.3 | 64 | 23 | 0.0493 | 0.0616 |
Venus | 61/3.75 | 33.8 | 673 | 1860 | 97.2 | 64 | 23 | 0.0429 | 0.0539 |
Russian National Standard——GOST 839-80 Type ACP Wire, Greased All Aluminium Conductor
Nominal Corss-section | Number of Wires | Wire Diameter | Calculated Cross-section | Overall Diameter | D.C. Resistance at 20 | Min. Breaking Load | Conductor Weight | Grease Weight |
mm2 | mm | mm2 | mm | Ω/km | kg/km | kg/km | ||
10 | 7 | 1,35 | 10,0 | 4,05 | 2,8631 | 1950 | 27,4 | – |
16 | 7 | 1,70 | 15,9 | 5,10 | 1,8007 | 3021 | 43,0 | 0,5 |
25 | 7 | 2,13 | 24,9 | 6,40 | 1,1498 | 4500 | 68,0 | 0,5 |
35 | 7 | 2,50 | 34,3 | 7,50 | 0,8347 | 5913 | 94,0 | 0,5 |
40 | 7 | 2,70 | 40,0 | 8,09 | 0,7157 | 6800 | 109,4 | – |
50 | 7 | 3,00 | 49,5 | 9,00 | 0,5784 | 8198 | 135,0 | 0,5 |
63 | 7 | 3,39 | 63,0 | 10,16 | 0,4544 | 10390 | 172,3 | – |
70 | 7 | 3,55 | 69,3 | 10,70 | 0,4131 | 11288 | 189,0 | 1,0 |
95 | 7 | 4,10 | 92,4 | 12,30 | 0,3114 | 14784 | 252,0 | 1,0 |
100 | 19 | 2,59 | 100,0 | 12,94 | 0,2877 | 17000 | 274,9 | – |
120 | 19 | 2,80 | 117,0 | 14,00 | 0,2459 | 19890 | 321,0 | 16 |
125 | 19 | 2,89 | 125,0 | 14,47 | 0,2301 | 21250 | 343,6 | – |
150 | 19 | 3,15 | 148,0 | 15,80 | 0,1944 | 24420 | 406,0 | 20 |
160 | 19 | 3,27 | 160,0 | 16,37 | 0,1798 | 26400 | 439,8 | – |
185 | 19 | 3,50 | 182,8 | 17,50 | 0,1574 | 29832 | 502,0 | 25 |
200 | 19 | 3,66 | 200,0 | 18,30 | 0,1438 | 32000 | 549,7 | – |
240 | 19 | 4,00 | 238,7 | 20,00 | 0,1205 | 38192 | 655,0 | 33 |
250 | 19 | 4,09 | 250,0 | 20,47 | 0,1150 | 40000 | 687,1 | – |
300 | 37 | 3,15 | 288,3 | 22,10 | 0,1000 | 47569 | 794,0 | 54 |
315 | 37 | 3,29 | 315,0 | 23,05 | 0,0915 | 51970 | 867,5 | – |
350 | 37 | 3,45 | 345,8 | 24,20 | 0,0833 | 57057 | 952,0 | 65 |
400 | 37 | 3,66 | 389,2 | 25,60 | 0,0740 | 63420 | 1072,0 | 73 |
450 | 37 | 3,90 | 449,1 | 27,30 | 0,0642 | 71856 | 1206,0 | 84 |
500 | 37 | 4,15 | 500,4 | 29,10 | 0,0576 | 80000 | 1378,0 | 94 |
550 | 61 | 3,37 | 544,0 | 30,30 | 0,0529 | 89760 | 1500,0 | 117 |
560 | 37 | 4,39 | 560,0 | 30,73 | 0,0531 | 89600 | 1542,2 | – |
600 | 61 | 3,50 | 586,8 | 31,50 | 0,0491 | 95632 | 1618,0 | 126 |
630 | 61 | 3,63 | 630,0 | 32,64 | 0,0458 | 100800 | 1738,4 | – |
650 | 61 | 3,66 | 641,7 | 32,90 | 0,0450 | 104575 | 1771,0 | 138 |
700 | 61 | 3,80 | 691,7 | 34,20 | 0,0417 | 112725 | 1902,0 | 149 |
710 | 61 | 3,85 | 710,0 | 34,65 | 0,0406 | 113600 | 1959,2 | – |
750 | 61 | 3,95 | 747,4 | 35,60 | 0,0386 | 119584 | 2062,0 | 161 |
Russian National Standard——GOST 839-80 AAC Conductor, Type a Wire, All Aluminium Conductor
Nominal Corss-section | Number of Wires | Wire Diameter | Calculated Cross-section | Overall Diameter | D.C. Resistance at 20 | Min. Breaking Load | Conductor Weight |
mm2 | mm | mm2 | mm | Ω/km | kg/km | ||
10 | 7 | 1,35 | 10,0 | 4,05 | 2,8631 | 1950 | 27,4 |
16 | 7 | 1,70 | 15,9 | 5,10 | 1,8007 | 3021 | 43,0 |
25 | 7 | 2,13 | 24,9 | 6,40 | 1,1498 | 4500 | 68,0 |
35 | 7 | 2,50 | 34,3 | 7,50 | 0,8347 | 5913 | 94,0 |
40 | 7 | 2,70 | 40,0 | 8,09 | 0,7157 | 6800 | 109,4 |
50 | 7 | 3,00 | 49,5 | 9,00 | 0,5784 | 8198 | 135,0 |
63 | 7 | 3,39 | 63,0 | 10,16 | 0,4544 | 10390 | 172,3 |
70 | 7 | 3,55 | 69,3 | 10,70 | 0,4131 | 11288 | 189,0 |
95 | 7 | 4,10 | 92,4 | 12,30 | 0,3114 | 14784 | 252,0 |
100 | 19 | 2,59 | 100,0 | 12,94 | 0,2877 | 17000 | 274,9 |
120 | 19 | 2,80 | 117,0 | 14,00 | 0,2459 | 19890 | 321,0 |
125 | 19 | 2,89 | 125,0 | 14,47 | 0,2301 | 21250 | 343,6 |
150 | 19 | 3,15 | 148,0 | 15,80 | 0,1944 | 24420 | 406,0 |
160 | 19 | 3,27 | 160,0 | 16,37 | 0,1798 | 26400 | 439,8 |
185 | 19 | 3,50 | 182,8 | 17,50 | 0,1574 | 29832 | 502,0 |
200 | 19 | 3,66 | 200,0 | 18,30 | 0,1438 | 32000 | 549,7 |
240 | 19 | 4,00 | 238,7 | 20,00 | 0,1205 | 38192 | 655,0 |
250 | 19 | 4,09 | 250,0 | 20,47 | 0,1150 | 40000 | 687,1 |
300 | 37 | 3,15 | 288,3 | 22,10 | 0,1000 | 47569 | 794,0 |
315 | 37 | 3,29 | 315,0 | 23,05 | 0,0915 | 51970 | 867,5 |
350 | 37 | 3,45 | 345,8 | 24,20 | 0,0833 | 57057 | 952,0 |
400 | 37 | 3,66 | 389,2 | 25,60 | 0,0740 | 63420 | 1072,0 |
450 | 37 | 3,90 | 449,1 | 27,30 | 0,0642 | 71856 | 1206,0 |
500 | 37 | 4,15 | 500,4 | 29,10 | 0,0576 | 80000 | 1378,0 |
550 | 61 | 3,37 | 544,0 | 30,30 | 0,0529 | 89760 | 1500,0 |
560 | 37 | 4,39 | 560,0 | 30,73 | 0,0531 | 89600 | 1542,2 |
600 | 61 | 3,50 | 586,8 | 31,50 | 0,0491 | 95632 | 1618,0 |
630 | 61 | 3,63 | 630,0 | 32,64 | 0,0458 | 100800 | 1738,4 |
650 | 61 | 3,66 | 641,7 | 32,90 | 0,0450 | 104575 | 1771,0 |
700 | 61 | 3,80 | 691,7 | 34,20 | 0,0417 | 112725 | 1902,0 |
710 | 61 | 3,85 | 710,0 | 34,65 | 0,0406 | 113600 | 1959,2 |
750 | 61 | 3,95 | 747,4 | 35,60 | 0,0386 | 119584 | 2062,0 |
