0.6/1 kV Multi-core cables, XLPE insulated, tape armoured with copper and aluminum conductor


CU/XLPE/STA (DST)/PVC Multi-core cables are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

0.6/1 kV Multi-core cables, XLPE insulated, tape armoured with copper and aluminum conductor

APPLICATIONS

These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.

CABLE CHARACTERISTICS

APPLICABLE STANDARDS

Low Voltage power cables are designed and tested to meet all the requirements of the latest edition of IEC 60502-1 standard. In addition, can also supply a range of alternative designs to meet customer-specified requirements.

CABLE CONSTRUCTION

Conductor

Plain annealed stranded circular (rm) or sector shaped (sm) copper conductor (Class 2 to IEC 60228).

Stranded circular (rm) or sector shaped (sm) aluminium conductor (Class 2 to IEC 60228).

Insulation

Extruded layer of Cross-linked Polyethylene (XLPE) to IEC 60502-1.

Assembly

Cores are assembled together using Non-hygroscopic filler, if needed.

Bedding

Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2) to IEC 60502-1.

Armouring

Double layers of galvanized steel tapes.

Outer Jacket

Extruded layer of Polyvinyl Chloride (PVC) – Type (ST2) to IEC 60502-1.

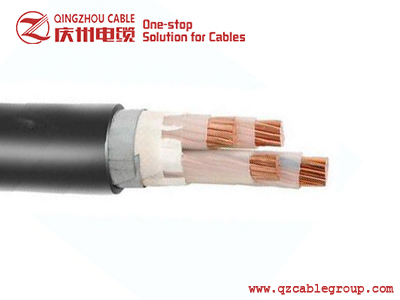

0.6/1 kV CU/XLPE/STA (DST)/PVC Multi-core cables, XLPE insulated, tape armoured with copper conductor IEC 60502-1



Nominal cross sectional area



ELECTRICAL DATA

DIMENSIONS AND WEIGHTS

Max. Conductor Resistance

Continuous Current Ratings



Approx. overall diameter



Approx. overall weight

DC at 20 °C

AC at 90 °C

Laid in ground

Laid in ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km

Two Core Cables

6

rm

3.0800

3.9274

67

49

62

15.4

430

10

rm

1.8300

2.3336

89

65

83

16.6

530

16

rm

1.1500

1.4667

114

84

110

18.6

705

25

rm

0.7270

0.9275

148

111

148

21.7

1000

35

rm

0.5240

0.6688

177

134

180

23.8

1260

Three Core Cables

6

rm

3.0800

3.9274

55

40

52

16.2

500

10

rm

1.8300

2.3336

74

54

70

17.9

615

16

rm

1.1500

1.4667

95

70

93

20.1

835

25

rm

0.7270

0.9275

123

92

124

23.4

1170

35

sm

0.5240

0.6688

140

106

140

22.8

1390

50

sm

0.3870

0.4944

166

128

171

25.8

1790

70

sm

0.2680

0.3431

203

159

215

29.7

2495

95

sm

0.1930

0.2481

243

193

263

33.3

3310

120

sm

0.1530

0.1976

278

224

310

37.8

4430

Four Core Cables

4

rm

4.6100

5.8783

45

32

41

16.0

480

6

rm

3.0800

3.9274

55

40

52

17.3

590

10

rm

1.8300

2.3336

74

54

70

19.2

755

16

rm

1.1500

1.4667

95

70

93

21.7

1020

25

rm

0.7270

0.9275

123

92

124

25.4

1465

35

sm

0.5240

0.6688

140

106

140

25.8

1780

50

sm

0.3870

0.4944

166

128

171

29.5

2320

70

sm

0.2680

0.3431

203

159

215

34.0

3235

95

sm

0.1930

0.2481

243

193

263

38.1

4630

120

sm

0.1530

0.1976

278

224

310

42.6

5760

150

sm

0.1240

0.1612

310

252

349

47.1

6990

185

sm

0.0991

0.1302

349

287

402

52.1

8590

240

sm

0.0754

0.1012

402

335

473

58.3

10995

300

sm

0.0601

0.0829

452

380

541

63.9

13550

400

sm

0.0470

0.0676

511

435

627

72.9

17260

500

sm

0.0366

0.0561

570

491

713

81.8

22775

Four Core Cables with Reduced Neutral

25 rm

16 rm

0.7270 / 1.1500

0.9275 / 1.4667

123

92

124

24.5

1370

35 sm

16 rm

0.5240 / 1.1500

0.6688 / 1.4667

140

106

140

25.8

1635

50 sm

25 rm

0.3870 / 0.7270

0.4944 / 0.9275

166

128

171

29.3

2135

70 sm

35 sm

0.2680 / 0.5240

0.3431 / 0.6688

203

159

215

32.6

2905

95 sm

50 sm

0.1930 / 0.3870

0.2481 / 0.4944

243

193

263

37.4

4160

120 sm

70 sm

0.1530 / 0.2680

0.1976 / 0.3431

278

224

310

40.5

5185

150 sm

70 sm

0.1240 / 0.2680

0.1612 / 0.3431

310

252

349

44.7

6165

185 sm

95 sm

0.0991 / 0.1930

0.1302 / 0.2481

349

287

402

49.6

7650

240 sm

120 sm

0.0754 / 0.1530

0.1012 / 0.1976

402

335

473

55.5

9735

300 sm

150 sm

0.0601 / 0.1240

0.0829 / 0.1612

452

380

541

60.6

11940

400 sm

185 sm

0.0470 / 0.0991

0.0676 / 0.1302

511

435

627

68.5

15100

500 sm

240 sm

0.0366 / 0.0754

0.0561 / 0.1012

570

491

713

76.1

19270

MORE

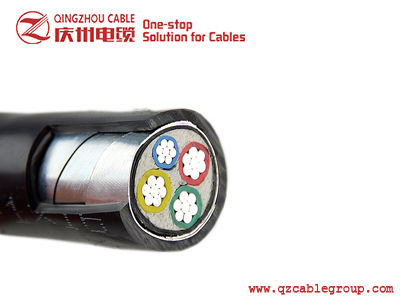

0.6/1 kV AL/XLPE/STA (DST)/PVC Multi-core cables, XLPE insulated, tape armoured with aluminum conductor IEC 60502-1



Nominal cross sectional area



ELECTRICAL DATA

DIMENSIONS AND WEIGHTS

Max. Conductor Resistance

Continuous Current Ratings



Approx. overall diameter



Approx. overall weight

DC at 20 °C

AC at 90 °C

Laid in ground

Laid in ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km

Two Core Cables

10

rm

3.0800

3.9490

68

50

64

16.6

410

16

rm

1.9100

2.4490

89

65

85

18.6

515

25

rm

1.2000

1.5388

115

86

115

21.2

675

35

rm

0.8680

1.1133

138

104

140

23.8

840

Three Core Cables

10

rm

3.0800

3.9490

57

41

54

17.9

440

16

rm

1.9100

2.4490

73

54

72

20.1

545

25

rm

1.2000

1.5388

95

72

97

22.8

700

35

sm

0.8680

1.1133

108

82

108

22.8

750

50

sm

0.6410

0.8224

129

99

132

25.8

930

70

sm

0.4430

0.5688

158

124

167

29.7

1235

95

sm

0.3200

0.4115

189

150

204

33.3

1575

120

sm

0.2530

0.3259

217

174

241

37.8

2245

Four Core Cables

10

rm

3.0800

3.9490

57

41

54

19.2

515

16

rm

1.9100

2.4490

73

54

72

21.7

640

25

rm

1.2000

1.5388

95

72

97

24.8

845

35

sm

0.8680

1.1133

108

82

108

25.8

930

50

sm

0.6410

0.8224

129

99

132

29.5

1180

70

sm

0.4430

0.5688

158

124

167

34.0

1560

95

sm

0.3200

0.4115

189

150

204

38.1

2315

120

sm

0.2530

0.3259

217

174

241

42.6

2845

150

sm

0.2060

0.2660

241

196

272

47.1

3390

185

sm

0.1640

0.2126

274

255

314

52.1

4075

240

sm

0.1250

0.1634

317

264

372

58.3

5105

300

sm

0.1000

0.1321

357

301

428

63.9

6085

400

sm

0.0778

0.1047

410

349

503

72.9

7705

500

sm

0.0605

0.0838

464

400

580

81.8

10245

Four Core Cables with Reduced Neutral

50 sm

25 rm

0.6410 / 1.2000

0.8224 / 1.5388

129

99

132

29.3

1125

70 sm

35 sm

0.4430 / 0.8680

0.5688 / 1.1133

158

124

167

32.6

1435

95 sm

50 sm

0.3200 / 0.6410

0.4115 / 0.8224

189

150

204

37.4

2140

120 sm

70 sm

0.2530 / 0.4430

0.3259 / 0.5688

217

174

241

40.5

2580

150 sm

70 sm

0.2060 / 0.4430

0.2660 / 0.5688

241

196

272

44.7

3045

185 sm

95 sm

0.1640 / 0.3200

0.2126 / 0.4115

274

255

314

49.6

3690

240 sm

120 sm

0.1250 / 0.2530

0.1634 / 0.3259

317

264

372

55.5

4590

300 sm

150 sm

0.1000 / 0.2060

0.1321 / 0.2660

357

301

428

60.6

5445

400 sm

185 sm

0.0778 / 0.1640

0.1047 / 0.2126

410

349

503

68.5

6805

500 sm

240 sm

0.0605 / 0.1250

0.0838 / 0.1634

464

400

580

76.1

8405

MORE

留言

请填写你想要知道的信息!我们将在5分钟内回复您!
