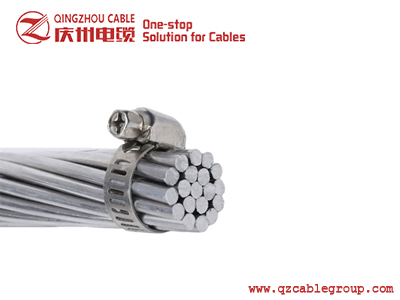

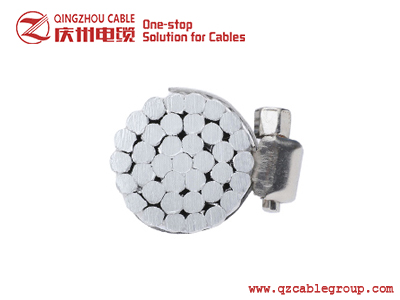

AAAC 6201 CONDUCTOR


Aluminum Alloy 6201 Wires, concentrically stranded over a central wire of Aluminum 6201. Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Application

AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying through basins, rivers and valleys where there are special geographic features.

Standard

  1. ​American Standard-ASTM B 399/B 399M
  2. German Standards-DIN 48201-6
  3. British Standards-BS EN 50182 BS 3242
  4. International Electrotechnical Commission International Standards&China National Standards-IEC 61089 GB/T 1179
  5. Russian National Standard-AAAC GOST 839-80

Construction

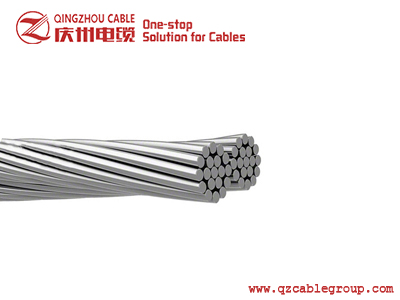

AAAC cable consists of aluminum alloy wires and the wires are concentrically stranded.

This section deals with aluminum alloys of the magnesium-silicon type heat treatable according to the applicable International Standard, whose electrical and mechanical properties are all within the values suggested by the relevant standard.

Conductors with all other recognized specifications can also be supplied. The mentioned alloys have higher strength but lower conductivity than pure aluminum.

Being lighter, alloy conductors can sometimes be used to advantage in place of more conventional ACSR; by having lower breaking loads than the later ones, its use becomes particularly favorable when the ice and wind loads are low.

ASTM B 399/B 399M Full Size

Code

Name

Area

Size&Stranding  ACSR with equal diameter

No. And diameter of wires

Cable diameter

Weight

Rated Strength

Strand Length

Nominal

Actual



MCM

mm²

AWG or MCM

AI/Steel

mm

mm

Kg/km

kN

m±5%

Akron

30.58

15.48

6

6/1

7/1.68

5.04

42.7

4.92

3000

Alton

48.69

24.71

4

6/1

7/2.12

6.35

68.0

7.84

3000

Ames

77.47

39.22

2

6/1

7/2.67

8.02

108

12.45

2000

Azusa

123.3

62.38

1/0

6/1

7/3.37

10.11

172

18.97

2000

Ananeim

155.4

78.65

2/0

6/1

7/3.78

11.35

217

23.93

3000

Amherst

195.7

99.22

3/0

6/1

7/4.25

12.75

273

30.18

2500

Alliance

246.9

125.1

4/0

6/1

7/4.77

14.31

345

38.05

2000

Butte

312.8

158.6

266.8

26/7

19/3.26

16.30

437

48.76

3000

Canton

394.5

199.9

336.4

26/7

19/3.66

18.30

551

58.91

2500

Cairo

465.5

235.8

397.5

26/7

19/3.98

19.88

650

69.48

2000

Darien

559.5

283.5

477

26/7

19/4.36

21.79

781

83.52

2000

Elgin

652.4

330.6

556.5

26/7

19/4.71

23.54

911

97.42

1500

Flint

740.8

375.3

636

26/7

37/3.59

25.16

1035

108.21

3000

Greely

927.2

469.8

795

26/7

37/4.02

28.14

1295

135.47

2500

MORE

ASTM B 399/B 399M Reduced Size

Nominal section

Stranding

Overall diameter

Weight

Rated Strength

Conductive Resistance

Capacity

AWG&MCM

mm^2

No.×mm

mm

kg/km

KN

Ω/Km

A

6

13.2

7/1.55

4.65

36.2

4.18

2.5361

69

4

21.1

7/1.96

5.88

57.9

6.69

1.586

93

2

33.5

7/2.47

7.41

92

10.6

0.9987

123

1/0

53.5

7/3.12

9.36

146.8

17

0.62592

165

2/0

67.3

7/3.50

10.5

184.8

20.4

0.49738

190

3/0

84.9

7/3.93

11.79

233

25.7

0.3945

219

4/0

107

7/4.42

13.26

294.7

32.5

0.31188

253

250

126

19/2.91

14.55

346.7

38.8

0.26509

280

300

152

19/3.19

15.95

416.7

46.6

0.22059

313

350

178

19/3.45

17.25

487.3

52

0.1886

345

400

203

19/3.69

18.45

557.5

59.5

0.16486

375

450

228

19/3.91

19.55

626

66.8

0.14683

402

500

253

19/4.12

20.6

695

74.2

0.13224

429

550

279

37/3.10

21.7

766.2

83.9

0.11995

455

600

303

37/3.23

22.61

831.9

91

0.11049

478

650

330

37/3.37

23.59

905.5

94.9

0.1015

504

700

354

37/3.49

24.43

971.2

101

0.09464

525

750

381

37/3.62

25.34

1045

109

0.08796

549

800

404

37/3.73

26.11

1109

116

0.08285

569

900

456

37/3.96

27.72

1250

131

0.07351

612

1000

508

37/4.18

29.26

1393

146

0.06597

653

1250

631

61/3.63

32.67

1732

179

0.05306

743

1500

759

61/3.98

35.82

2082

215

0.04414

827

1750

886

61/4.30

38.7

2431

251

0.03781

904

MORE

AAAC 6201 ASTM B 399

Conductor size Sectional Area Stranding Diameter of Complete Conductor Weight Rated Strength DC Resistance @ 20°C Current Capacity
    No. of Aluminium Wires Individual wire diameter         @ 75°C @ 85°C
(kcmil) (mm²) (No.) (mm) (mm) (Kg/Km) KN (Ω/Km) (Ampere) (Ampere)
1439.2 729 61 3.9 35.1 1999 207 0.04597 693 897
1348.8 685 61 3.78 34.02 1878 194 0.04893 671 865
1259.6 638 61 3.65 32.85 1751 181 0.05248 646 831
1165.1 590 61 3.51 31.59 1620 167 0.05675 620 794
1077.4 547 61 3.38 30.42 1502 156 0.0612 595 760
927.2 470 37 4.02 28.14 1289 135 0.07133 547 694
740.8 375 37 3.59 25.13 1028 107 0.08944 482 607
652.4 331 19 4.71 23.55 908.3 97 0.1012 449 564
559.5 284 19 4.36 21.8 778.3 83.1 0.1181 412 514
465.4 236 19 3.98 19.9 648.6 69.2 0.1417 371 461
394.5 200 19 3.66 18.3 548.5 58.6 0.1676 337 417
312.8 159 19 3.26 16.3 435.1 46.5 0.2112 295 362
246.9 125 7 4.77 14.31 343.2 37.8 0.2678 256 313
195.7 99.3 7 4.25 12.75 272.5 30 0.3373 224 272
155.4 78.6 7 3.78 11.34 215.6 23.8 0.4264 195 236
123.3 62.4 7 3.37 10.11 171.3 18.9 0.5365 170 205
77.47 39.2 7 2.67 8.01 107.5 12.4 0.8547 129 154
48.69 24.7 7 2.12 6.36 67.8 7.83 1.356 98 116
30.58 15.5 7 1.68 5.04 42.58 4.92 2.159 74 88
1750 886 61 4.3 38.7 2431 251 0.03781 767 1002
1500 759 61 3.98 35.82 2082 215 0.04414 708 918
1250 631 61 3.63 32.67 1732 179 0.05306 642 826
1000 508 37 4.18 29.26 1393 146 0.06597 571 727
900 456 37 3.96 27.72 1250 131 0.07351 538 682
800 404 37 3.73 26.11 1109 116 0.08285 503 636
750 381 37 3.62 25.34 1045 109 0.08796 487 613
700 354 37 3.49 24.43 971.2 101 0.09464 467 587
650 330 37 3.37 23.59 905.5 94.9 0.1015 449 563
600 303 37 3.23 22.61 831.9 91 0.11049 428 535
550 279 37 3.1 21.7 766.2 83.9 0.11995 408 510
500 253 19 4.12 20.6 695 74.2 0.13224 386 480
450 228 19 3.91 19.55 626 66.8 0.14683 364 451
400 203 19 3.69 18.45 557.5 59.5 0.16486 340 421
350 178 19 3.45 17.25 487.3 52 0.1886 315 388
300 152 19 3.19 15.95 416.7 46.6 0.22059 287 353
250 126 19 2.91 14.55 346.7 38.8 0.26509 258 316
211.6 107 7 4.42 13.26 294.7 32.5 0.31188 234 285
167.8 84.9 7 3.93 11.79 233 25.7 0.3945 204 247
133.1 67.3 7 3.5 10.5 184.8 20.4 0.49738 178 215
105.6 53.5 7 3.12 9.36 146.8 17 0.62592 155 187
66.36 33.5 7 2.47 7.41 92 10.6 0.9987 118 140
41.74 21.1 7 1.96 5.88 57.9 6.69 1.586 89 106
26.24 13.2 7 1.55 4.65 36.2 4.18 2.5361 67 79
MORE

All Aluminum Alloy Conductor (AAAC) Cables DIN 48201-6

Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.×mm mm kg/km KN Ω/Km A
16 15.89 7/1.70 5.1 43 4.44 2.0742 78
25 24.25 7/2.10 6.3 66 6.77 1.3593 102
35 34.36 7/2.50 7.5 94 9.6 0.9591 126
50 49.48 7/3.00 9 135 13.82 0.666 158
50 48.35 19/1.80 9 133 13.5 0.6849 156
70 65.81 19/2.10 10.5 181 18.38 0.5032 189
95 93.27 19/2.50 12.5 256 26.05 0.3551 234
120 116.99 19/2.80 14 322 32.68 0.2831 269
150 147.11 37/2.25 15.8 406 41.09 0.2256 309
185 181.62 37/2.50 17.5 500 50.73 0.1828 352
240 242.54 61/2.25 20.3 670 67.74 0.1371 420
300 299.43 61/2.50 22.5 827 83.63 0.111 477
400 400.14 61/2.89 26 1104 111.76 0.0831 568
500 499.83 61/3.23 29.1 1379 139.6 0.0665 649
625 626.2 91/2.96 32.6 1732 174.9 0.0531 742
800 802.09 91/3.35 36.9 2218 224.02 0.0415 857
1000 999.71 91/3.74 41.1 2767 279.22 0.0333 971
MORE

AAAC cable BS EN 50182 BS 3242

Code Stranding Nominal Area Sectional Area Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
  No.×mm mm^2 mm^2 mm kg/km KN Ω/Km A
Box 7/1.85 15 18.8 5.55 51.4 5.55 1.748 87
Acacia 7/2.08 20 23.8 6.24 64.9 7.02 1.3828 101
Almond 7/2.34 25 30.1 7.02 82.2 8.88 1.0926 116
Cedar 7/2.54 30 35.5 7.62 96.8 10.46 0.9273 129
Deodar 7/2.77 35 42.2 8.31 115.2 12.44 0.7797 143
Fir 7/2.95 40 47.8 8.85 130.6 14.11 0.6875 155
Hazel 7/3.30 50 59.9 9.9 163.4 17.66 0.5494 178
Pine 7/3.61 60 71.6 10.83 195.6 21.14 0.4591 199
Holly 7/3.91 70 84.1 11.73 229.5 24.79 0.3913 219
Willow 7/4.04 75 89.7 12.12 245 26.47 0.3665 228
7/4.19 80 96.52 12.57 264 27.17 0.3411 245
7/4.44 90 108.0 13.32 298 30.65 0.3023 260
Oak 7/4.65 80 118.9 13.95 324.5 35.07 0.2767 272
19/2.82 100 118.70 14.1 326 33.42 0.2787 290
Mulberry 19/3.18 125 150.9 15.9 414.3 44.52 0.2192 314
Ash 19/3.48 150 180.7 17.4 496.1 53.31 0.183 351
Elm 19/3.76 175 211 18.8 579.2 62.24 0.1568 386
Poplar 37/2.87 200 239.4 20.09 659.4 70.61 0.1387 416
37/3.05 225 270.30 21.35 744 76.08 0.1227 448
Sycamore 37/3.23 250 303.2 22.61 835.2 89.4 0.1095 480
Upas 37/3.53 300 362.1 24.71 997.5 106.82 0.0917 535
Walnut 37/3.81 350 421.80 26.67 1162 118.72 0.07860 584
Yew 37/4.06 400 479 28.42 1319.6 141.31 0.0693 633
Totara 37/4.14 425 498.1 28.98 1372.1 146.93 0.0666 648
Rubus 61/3.50 500 586.9 31.5 1622 173.13 0.0567 714
Sorbus 61/3.71 600 659.4 33.39 1822.5 194.53 0.0505 764
Araucaria 61/4.14 700 821.1 37.26 2269.4 242.24 0.0406 868
Redwood 61/4.56 800 996.2 41.04 2753.2 293.88 0.0334 970
MORE

AAAC Cables IEC 61089 A2 A3 Conductors GB/T 1179

Code A2/A3 Sectional Area A2/A3 Stranding A2/A3 Overall Diameter A2/A3 Weight A2/A3 Rated Strength Electrical Resistance Current Rating*
  mm^2 No.×mm mm kg/km KN Ω/Km A
16 18.4/18.6 7/1.83/1.84 5.49/5.52 50.4/50.8 5.43/6.04 1.7896 86
25 28.8/29.0 7/2.29/2.30 6.87/6.90 78.7/79.5 8.49/9.44 1.1453 113
40 46/46.5 7/2.89/2.91 8.67/8.72 125.9/127.1 13.58/15.10 0.7158 151
63 72.5/73.2 7/3.63/3.65 10.89/10.90 198.3/200.2 21.39/23.06 0.4545 200
100 115/116 19/2.78/2.79 13.9/14.0 316.3/319.3 33.95/37.76 0.2877 266
125 144/145 19/3.10/3.12 15.5/15.6 395.4/399.2 42.44/47.20 0.2302 305
160 184/186 19/3.51/3.53 17.55/17.60 506.1/511.0 54.32/58.56 0.1798 355
200 230/232 19/3.93/3.95 19.65/19.70 632.7/638.7 67.91/73.20 0.1439 407
250 288/290 19/4.39/4.41 21.95/22.1 790.8/798.4 84.88/91.50 0.1151 466
315 363/366 37/3.53/3.55 24.71/24.80 998.9/1008.4 106.95/115.3 0.0916 535
400 460/465 37/3.98/4.00 27.86/28.00 1268.4/1280.5 135.81/146.40 0.0721 618
450 518/523 37/4.22/4.24 29.54/29.70 1426.9/1440.5 152.79/164.70 0.0641 663
500 575/581 37/4.45/4.47 31.15/31.30 1585.5/1600.6 169.76/183.00 0.0577 706
560 645/651 61/3.67/3.69 33.03/33.20 1778.4/1795.3 190.14/204.96 0.0516 755
630 725/732 61/3.89/3.91 35.01/35.20 2000.7/2019.8 213.9/230.58 0.0458 809
710 817/825 61/4.13/4.15 37.17/37.3 2254.8/2276.2 241.07/259.86 0.0407 866
800 921/930 61/4.38/4.40 39.42/39.6 2540.6/2564.8 271.62/292.80 0.0361 928
900 1036/1046 91/3.81/3.83 41.91/42.10 2861.1/2888.3 305.58/329.40 0.0321 992
1000 1151/1162 91/4.01/4.03 44.11/44.40 3179/3209 339.53/366 0.0289 1051
1120 1289/1301 91/4.25/4.27 46.75/46.9 3560.5/3594.4 380.27/409.92 0.0258 1118
1250 1439 91/4.49 49.39 3973.7 424.41 0.0231 1185
MORE

AAAC Conductor, Type Ah, All Aluminium Alloy Conductor (GOST 839-80)

Nominal Cross Section

Calculated Cross Section

Number of  ires Conductor Diameter

DC Resistance at 20

Min. Breaking Load

Conductor Weight
mm2 mm2   mm Ω N kg/km
16 15.9 7 5.1 1.9037 3734 43
25 24.9 7 6.4 1.2139 5370 68
35 34.3 7 7.5 0.8819 7389 94
50 49.5 7 9 0.6121 10662 135
120 117 19 14 0.2609 25186 321
150 148 19 15.8 0.2059 31900 406
185 182.3 19 17.5 0.1669 39386 502
MORE

AAAC Conductor, Type Ankp, All Aluminium Alloy Conductor (GOST 839-80)

Nominal Cross Section Calculated Corss Section Number of  Wires Conductor Diameter DC Resistance at 20 Min. Breaking Load Conductor Weight Grease Weight
mm2 mm2   mm Ω N kg/km kg/km
16 15.9 7 5.1 1.9037 3734 43 0.5
25 24.9 7 6.4 1.2139 5370 68 0.5
35 34.3 7 7.5 0.8819 7389 94 0.5
50 49.5 7 9 0.6121 10662 135
120 117 19 14 0.2609 25186 321
150 148 19 15.8 0.2059 31900 406
185 182.3 19 17.5 0.1669
MORE

留言

请填写你想要知道的信息!我们将在5分钟内回复您!
