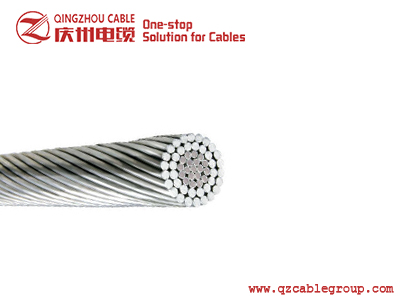

ACSS-Aluminum Conductor, Steel Supported. Bare.

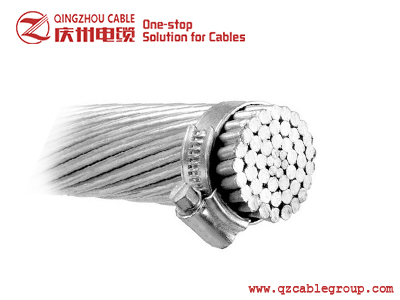

ACSS/AW-Aluminum Conductor. Aluminum-Clad Steel Supported.

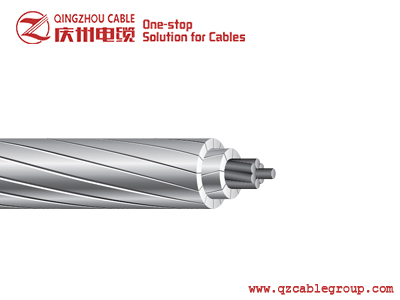

ACSS/TW-Aluminum Conductor, Steel Supported. Trapezoidal Shaped Aluminum Strands
APPLICATIONS
ACSS & ACSS/AW is used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less under emergency electrical loadings than ACSR/AW; it is self-damping if prestretched during installation; and its final sags are not affected by long term creep of aluminum. The advantages make ACSS/AW especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.
ACSS/AW offers strength characteristics similar to ACSS, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires
ACSS/TW is designed for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than 0 ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminum.
CONSTRUCTION
ACSS is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of 63% minimum average conductivity aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the "0" (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by Galfan® , zinc-5% aluminum-mischmetal alloy coating. High strength steel core, aluminized, and aluminum clad steel core is also available..
For aluminum-clad (AW) ACSS, please refer to the ACSS/AW catalog sheet.
Corrosion protection should be selected to suit the environment to which the conductor will be exposed.
ACSS/AW is a composite concentric-lay-stranded conductor. Steel strands form the central core of the conductor with one or more layers of aluminum 1350-0 wire stranded around it. The steel core carries most or all of the mechanical load of the conductor due to the "0" (fully annealed or soft) temper aluminum. Steel core wires are protected from corrosion by an aluminum coating.
SPECIFICATIONS
ACSS conductor meets or exceeds the following American Standard-ASTM specifications:
B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.
B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
B803 High-Strength Zinc-5% Aluminum Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.
B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).
B958 Extra-High-Strength and Ultra-High-Strength Class A Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.
The strandings available are identical to those listed in ASTM specification B232
ACSS/AW conductor meets or exceeds the following American Standard-ASTM specifications:
B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
B502 Aluminum-Clad Steel Core Wire for Aluminum conductors, Aluminum-Clad Steel Reinforced.
B856 Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Supported (ACSS).
The strandings available are identical to those listed in ASTM specification B232.
ACSS/TW conductor meets or exceeds the following American Standard-ASTM specifications:
B500 Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced.
B609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.
B802 Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced.
B803 High-Strength Zinc-5% Aluminum-Mischmetal Alloy-Coated Steel Core Wire for Aluminum and Aluminum-Alloy Conductors, Steel Reinforced.
B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Supported (ACSS/TW).
ACSS American Standard——ASTM B856
Code Word | Size (kcmil) | Strand -ing (Al/St) | Diameter (in) | Weight (lbs/1000 ft) | Rated Strength (lbs) | Resistance (OHMS/1000ft) | Ampacity @ 200°C (AMPS) | ||||||||
Individual Wires | Steel Core | Comp Cable | |||||||||||||
Al | Steel | Al | Steel | Total | Standard Strength | High* Strength | HS285** Strength | DC @ 20°C | AC @ 75°C | ||||||
Partridge/ACSS | 266.8 | 26/7 | 0.1013 | 0.0788 | 0.2363 | 0.642 | 251.3 | 115.5 | 366.8 | 8880 | 9730 | 11400 | .0619 | .0761 | 812 |
Junco/ACSS | 266.8 | 30/7 | 0.0943 | 0.0943 | 0.2829 | 0.660 | 251.9 | 165.5 | 417.4 | 11700 | 13000 | 15200 | .0615 | .0756 | 822 |
Ostrich/ACSS | 300.0 | 26/7 | 0.1074 | 0.0835 | 0.2506 | 0.680 | 282.6 | 129.9 | 412.5 | 10000 | 10900 | 12800 | .0551 | .0677 | 877 |
Linnet/ACSS | 336.4 | 26/7 | 0.1137 | 0.0885 | 0.2654 | 0.720 | 316.8 | 145.7 | 462.5 | 11200 | 12300 | 14400 | .0491 | .0604 | 945 |
Oriole/ACSS | 336.4 | 30/7 | 0.1059 | 0.1059 | 0.3177 | 0.741 | 317.6 | 208.7 | 526.3 | 14800 | 16300 | 19100 | .0488 | .0600 | 957 |
Brant/ACSS | 397.5 | 24/7 | 0.1287 | 0.0858 | 0.2574 | 0.772 | 374.4 | 137.0 | 511.4 | 11000 | 12100 | 14100 | .0417 | .0514 | 1047 |
Ibis/ACSS | 397.5 | 26/7 | 0.1236 | 0.0962 | 0.2885 | 0.783 | 374.4 | 172.1 | 546.5 | 13000 | 14200 | 16500 | .0416 | .0512 | 1054 |
Lark/ACSS | 397.5 | 30/7 | 0.1151 | 0.1151 | 0.3453 | 0.806 | 375.3 | 246.5 | 621.8 | 17500 | 19300 | 22600 | .0413 | .0508 | 1068 |
Flicker/ACSS | 477 | 24/7 | 0.1410 | 0.0940 | 0.2819 | 0.846 | 449.3 | 164.4 | 613.7 | 13000 | 14200 | 16400 | .0348 | .0429 | 1180 |
Hawk/ACSS | 477 | 26/7 | 0.1354 | 0.1053 | 0.3160 | 0.858 | 449.3 | 206.5 | 655.8 | 15600 | 17100 | 19800 | .0346 | .0427 | 1188 |
Hen/ACSS | 477 | 30/7 | 0.1261 | 0.1261 | 0.3783 | 0.883 | 450.4 | 295.9 | 746.3 | 21000 | 22700 | 26700 | .0344 | .0424 | 1204 |
Parakeet/ACSS | 556.5 | 24/7 | 0.1523 | 0.1015 | 0.3045 | 0.914 | 524.0 | 192.0 | 716.0 | 15200 | 16600 | 19100 | .0298 | .0368 | 1306 |
Dove/ACSS | 556.5 | 26/7 | 0.1463 | 0.1138 | 0.3413 | 0.927 | 524.2 | 240.9 | 765.1 | 18200 | 19900 | 23200 | .0297 | .0366 | 1315 |
Eagle/ACSS | 556.5 | 30/7 | 0.1362 | 0.1362 | 0.4086 | 0.953 | 525.4 | 345.2 | 870.6 | 24500 | 26500 | 31100 | .0295 | .0363 | 1331 |
Peacock/ACSS | 605 | 24/7 | 0.1588 | 0.1058 | 0.3175 | 0.953 | 569.8 | 208.5 | 778.3 | 16500 | 18100 | 20800 | .0274 | .0339 | 1379 |
Squab/ACSS | 605 | 26/7 | 0.1525 | 0.1186 | 0.3559 | 0.966 | 569.8 | 261.9 | 831.7 | 19700 | 21300 | 25200 | .0273 | .0337 | 1389 |
Wood Duck/ACSS | 605 | 30/7 | 0.1420 | 0.1420 | 0.4260 | 0.994 | 571.2 | 375.3 | 946.5 | 26000 | 28300 | 33300 | .0271 | .0334 | 1407 |
Teal/ACSS | 605 | 30/19 | 0.1420 | 0.0852 | 0.4260 | 0.994 | 571.2 | 367.4 | 938.6 | 26600 | 29300 | 34800 | .0272 | .0335 | 1406 |
Rook/ACSS | 636 | 24/7 | 0.1628 | 0.1085 | 0.3256 | 0.977 | 599.0 | 219.2 | 818.2 | 17300 | 19000 | 21900 | .0261 | .0322 | 1425 |
Grosbeak/ACSS | 636 | 26/7 | 0.1564 | 0.1216 | 0.3649 | 0.991 | 599.0 | 275.4 | 874.4 | 20700 | 22400 | 26000 | .0260 | .0321 | 1435 |
Scoter/ACSS | 636 | 30/7 | 0.1456 | 0.1456 | 0.4368 | 1.019 | 600.5 | 394.5 | 995.0 | 27400 | 29700 | 35000 | .0258 | .0318 | 1454 |
Egret/ACSS | 636 | 30/19 | 0.1456 | 0.0874 | 0.4368 | 1.019 | 600.5 | 386.3 | 986.8 | 28000 | 30900 | 36600 | .0258 | .0319 | 1453 |
Flamingo/ACSS | 666.6 | 24/7 | 0.1667 | 0.1111 | 0.3333 | 1.000 | 627.9 | 229.7 | 857.6 | 18200 | 19900 | 22900 | .0249 | .0308 | 1470 |
Gannet/ACSS | 666.6 | 26/7 | 0.1601 | 0.1245 | 0.3736 | 1.014 | 627.8 | 288.6 | 916.4 | 21700 | 23400 | 27300 | .0248 | .0306 | 1480 |
Stilt/ACSS | 715.5 | 24/7 | 0.1727 | 0.1151 | 0.3453 | 1.036 | 673.9 | 246.5 | 920.4 | 19500 | 21300 | 24600 | .0232 | .0287 | 1540 |
Starling/ACSS | 715.5 | 26/7 | 0.1659 | 0.1290 | 0.3871 | 1.051 | 673.9 | 309.8 | 983.7 | 23300 | 25200 | 29800 | .0231 | .0286 | 1550 |
Redwing/ACSS | 715.5 | 30/19 | 0.1544 | 0.0927 | 0.4633 | 1.081 | 675.6 | 434.6 | 1110.2 | 30800 | 34000 | 39800 | .0230 | .0284 | 1570 |
Cuckoo/ACSS | 795 | 24/7 | 0.1820 | 0.1213 | 0.3640 | 1.092 | 748.8 | 274.0 | 1022.8 | 21700 | 23300 | 26900 | .0209 | .0259 | 1650 |
Drake/ACSS | 795 | 26/7 | 0.1749 | 0.1360 | 0.4080 | 1.107 | 748.8 | 344.2 | 1093.0 | 25900 | 28000 | 32600 | .0209 | .0257 | 1662 |
Macaw/ACSS | 795 | 42/7 | 0.1376 | 0.0764 | 0.2293 | 1.055 | 748.8 | 108.7 | 857.5 | 11800 | 12600 | 14300 | .0211 | .0262 | 1621 |
Tern/ACSS | 795 | 45/7 | 0.1329 | 0.0886 | 0.2658 | 1.063 | 748.8 | 146.1 | 894.9 | 14200 | 15200 | 17400 | .0210 | .0263 | 1618 |
Condor/ACSS | 795 | 54/7 | 0.1213 | 0.1213 | 0.3640 | 1.092 | 748.8 | 274.0 | 1022.8 | 21700 | 23300 | 26900 | .0209 | .0266 | 1618 |
Mallard/ACSS | 795 | 30/19 | 0.1628 | 0.0977 | 0.4884 | 1.139 | 750.6 | 482.8 | 1233.4 | 34300 | 37900 | 44300 | .0207 | .0255 | 1683 |
Ruddy/ACSS | 900 | 45/7 | 0.1414 | 0.0943 | 0.2828 | 1.131 | 847.7 | 165.4 | 1012.1 | 15800 | 17000 | 19200 | .0186 | .0233 | 1755 |
Canary/ACSS | 900 | 54/7 | 0.1291 | 0.1291 | 0.3873 | 1.162 | 847.7 | 310.1 | 1157.8 | 24600 | 26400 | 30500 | .0184 | .0236 | 1756 |
Redbird/ACSS | 954 | 24/7 | 0.1994 | 0.1329 | 0.3987 | 1.196 | 898.5 | 328.7 | 1227.2 | 26000 | 28000 | 32300 | .0174 | .0217 | 1859 |
Rail/ACSS | 954 | 45/7 | 0.1456 | 0.0971 | 0.2912 | 1.165 | 898.5 | 175.3 | 1073.8 | 16700 | 18000 | 20400 | .0175 | .0220 | 1824 |
Towhee/ACSS | 954 | 48/7 | 0.1410 | 0.1097 | 0.3290 | 1.175 | 898.5 | 223.7 | 1122.2 | 19700 | 21300 | 24300 | .0175 | .0218 | 1842 |
Cardinal/ACSS | 954 | 54/7 | 0.1329 | 0.1329 | 0.3987 | 1.196 | 898.6 | 328.7 | 1227.2 | 26000 | 28000 | 32300 | .0174 | .0223 | 1825 |
Canvasback/ACSS | 954 | 30/19 | 0.1783 | 0.1070 | 0.5350 | 1.248 | 900.7 | 579.4 | 1480.1 | 41100 | 45400 | 53100 | .0172 | .0214 | 1897 |
Snowbird/ACSS | 1033.5 | 42/7 | 0.1569 | 0.0871 | 0.2614 | 1.203 | 973.4 | 141.3 | 1114.7 | 15400 | 16500 | 18500 | .0162 | .0204 | 1924 |
Ortolan/ACSS | 1033.5 | 45/7 | 0.1515 | 0.1010 | 0.3031 | 1.212 | 973.4 | 190.0 | 1163.4 | 18100 | 19500 | 22000 | .0162 | .0204 | 1921 |
Curlew/ACSS | 1033.5 | 54/7 | 0.1383 | 0.1383 | 0.4150 | 1.245 | 973.4 | 356.2 | 1329.6 | 28200 | 30300 | 35000 | .0161 | .0206 | 1924 |
Bluejay/ACSS | 1113 | 45/7 | 0.1573 | 0.1048 | 0.3145 | 1.258 | 1048.3 | 204.5 | 1252.8 | 19500 | 21100 | 23800 | .0150 | .0190 | 2017 |
Finch/ACSS | 1113 | 54/19 | 0.1436 | 0.0861 | 0.4307 | 1.292 | 1053.4 | 375.5 | 1428.9 | 30400 | 33200 | 38700 | .0150 | .0193 | 2015 |
Bunting/ACSS | 1192.5 | 45/7 | 0.1628 | 0.1085 | 0.3256 | 1.302 | 1123.2 | 219.2 | 1342.4 | 21400 | 23500 | 25400 | .0140 | .0178 | 2110 |
Bittern/ACSS | 1272 | 45/7 | 0.1681 | 0.1121 | 0.3363 | 1.345 | 1198.0 | 234.0 | 1432.0 | 22300 | 24000 | 27100 | .0131 | .0167 | 2201 |
Pheasant/ACSS | 1272 | 54/19 | 0.1535 | 0.0921 | 0.4604 | 1.381 | 1203.9 | 429.2 | 1633.1 | 34100 | 37300 | 43000 | .0131 | .0169 | 2200 |
Dipper/ACSS | 1351 | 45/7 | 0.1733 | 0.1155 | 0.3465 | 1.386 | 1272.5 | 248.3 | 1520.8 | 23700 | 25500 | 28800 | .0124 | .0158 | 2289 |
Martin/ACSS | 1351 | 54/19 | 0.1582 | 0.0949 | 0.4745 | 1.424 | 1278.7 | 455.8 | 1734.5 | 36200 | 39600 | 45600 | .0123 | .0160 | 2288 |
Bobolink/ACSS | 1431 | 45/7 | 0.1783 | 0.1189 | 0.3566 | 1.427 | 1347.8 | 263.0 | 1610.8 | 25100 | 27000 | 30500 | .0117 | .0150 | 2375 |
Plover/ACSS | 1431 | 54/19 | 0.1628 | 0.0977 | 0.4884 | 1.465 | 1354.4 | 482.8 | 1837.2 | 38400 | 41900 | 48300 | .0117 | .0151 | 2375 |
Nuthatch/ACSS | 1510 | 45/7 | 0.1832 | 0.1221 | 0.3664 | 1.465 | 1422.2 | 277.5 | 1699.7 | 26500 | 28100 | 31800 | .0111 | .0143 | 2459 |
Parrot/ACSS | 1510 | 54/19 | 0.1672 | 0.1003 | 0.5017 | 1.505 | 1429.2 | 509.5 | 1938.7 | 40400 | 44200 | 51000 | .0110 | .0144 | 2460 |
Ratite/ACSS | 1590 | 42/7 | 0.1946 | 0.1081 | 0.3243 | 1.492 | 1497.6 | 217.4 | 1715.0 | 23400 | 25000 | 27900 | .0105 | .0136 | 2543 |
Lapwing/ACSS | 1590 | 45/7 | 0.1880 | 0.1253 | 0.3759 | 1.504 | 1497.6 | 292.2 | 1789.8 | 27900 | 29600 | 33500 | .0105 | .0136 | 2543 |
Falcon/ACSS | 1590 | 54/19 | 0.1716 | 0.1030 | 0.5148 | 1.544 | 1504.9 | 536.5 | 2041.4 | 42600 | 46600 | 53700 | .0105 | .0137 | 2545 |
Chukar/ACSS | 1780 | 84/19 | 0.1456 | 0.0873 | 0.4367 | 1.601 | 1684.7 | 386.1 | 2070.8 | 35400 | 38200 | 43900 | .0094 | .0122 | 2751 |
Mockingbird/ACSS | 2034.5 | 72/7 | 0.1681 | 0.1121 | 0.3362 | 1.681 | 1925.6 | 233.7 | 2159.3 | 27200 | 28900 | 32000 | .0083 | .0110 | 2960 |
Roadrunner/ACSS | 2057 | 76/19 | 0.1645 | 0.0768 | 0.3839 | 1.700 | 1946.9 | 298.3 | 2245.2 | 31700 | 33900 | 38300 | .0082 | .0108 | 2992 |
Bluebird/ACSS | 2156 | 84/19 | 0.1602 | 0.0961 | 0.4806 | 1.762 | 2040.6 | 467.6 | 2508.2 | 42100 | 45500 | 51700 | .0078 | .0103 | 3106 |
Kiwi/ACSS | 2167 | 72/7 | 0.1735 | 0.1157 | 0.3470 | 1.735 | 2051.0 | 248.9 | 2299.9 | 29000 | 30800 | 34100 | .0078 | .0104 | 3080 |
Thrasher/ACSS | 2312 | 76/19 | 0.1744 | 0.0814 | 0.4070 | 1.802 | 2188.2 | 335.3 | 2523.5 | 35600 | 38100 | 43000 | .0073 | .0098 | 3218 |
Joree/ACSS | 2515 | 76/19 | 0.1819 | 0.0849 | 0.4245 | 1.880 | 2380.4 | 364.7 | 2745.1 | 38700 | 41400 | 46800 | .0067 | .0092 | 3390 |
Notes: Data Based on a nominal cable manufactured in accordance with ASTM B856. Resistance and Ampacity based on an aluminum conductivity of 63%, IACS at 20°C, and a steel conductivity of 8%, IACS at 20°C. Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2ft/sec. wind, in sun, with an emissivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. Rated strength for standard strength core based on Class A Galfan coated steel core wire in accordance with ASTM B802. Rated strength for high strength core based on a Class A Galfan coated high strength steel core wire in accordance with B803. *Designated by “/HS” (e.g. Drake/ACSS/HS) **Designated by “/HS285” (e.g. Drake/ACSS/HS285) |
ACSS/AW American Standard-ASTM B 856
Code Word | Size (kcmil) | Stranding (Al/St) | Diameter (in) | Weight Per 1000 ft (lb) | Rated Strength (lb) | Resistance OHMS/1000 ft | Ampacity at 200°C (AMPS) | |||||||
Individual Wires | Steel Core | Complete Cable | DC @ 20°C | AC @ 75°C | ||||||||||
Al | Steel | Al | Steel | Total | ||||||||||
Junco/ACSS/AW | 266.8 | 30/7 | .0943 | .0943 | .2829 | .66 | 252 | 140 | 392 | 11200 | .0589 | .0723 | 841 | |
Ostrich/ACSS/AW | 300 | 26/7 | .1074 | .0835 | .2506 | .68 | 283 | 110 | 393 | 9360 | .0534 | .0656 | 891 | |
Linnet/ACSS/AW | 336.4 | 26/7 | .1137 | .0885 | .2654 | .72 | 317 | 123 | 440 | 10500 | .0476 | .0585 | 960 | |
Oriole/ACSS/AW | 336.4 | 30/7 | .1059 | .1059 | .3177 | .741 | 318 | 177 | 494 | 14200 | .0467 | .0573 | 979 | |
Brant/ACSS/AW | 397.5 | 24/7 | .1287 | .0858 | .2574 | .772 | 374 | 116 | 490 | 10400 | .0407 | .0501 | 1061 | |
Ibis/ACSS/AW | 397.5 | 26/7 | .1236 | .0962 | .2885 | .783 | 374 | 146 | 520 | 12400 | .0403 | .0496 | 1071 | |
Lark/ACSS/AW | 397.5 | 30/7 | .1151 | .1151 | .3453 | .806 | 375 | 209 | 584 | 16700 | .0395 | .0486 | 1092 | |
Flicker/ACSS/AW | 477 | 24/7 | .141 | .094 | .2819 | .846 | 449 | 139 | 589 | 12500 | .0339 | .0418 | 1195 | |
Hawk/ACSS/AW | 477 | 26/7 | .1354 | .1053 | .316 | .858 | 449 | 175 | 624 | 14900 | .0336 | .0413 | 1207 | |
Hen/ACSS/AW | 477 | 30/7 | .1261 | .1261 | .3783 | .883 | 450 | 251 | 701 | 20100 | .0329 | .0405 | 1231 | |
Parakeet/ACSS/AW | 556.5 | 24/7 | .1523 | .1015 | .3045 | .914 | 524 | 163 | 687 | 14600 | .0291 | .0359 | 1323 | |
Dove/ACSS/AW | 556.5 | 26/7 | .1463 | .1138 | .3413 | .927 | 524 | 204 | 728 | 17500 | .0288 | .0355 | 1336 | |
Eagle/ACSS/AW | 556.5 | 30/7 | .1362 | .1362 | .4086 | .953 | 525 | 293 | 818 | 22900 | .0282 | .0348 | 1362 | |
Peacock/ACSS/AW | 605 | 24/7 | .1588 | .1058 | .3175 | .953 | 570 | 177 | 746 | 15900 | .0267 | .033 | 1397 | |
Squab/ACSS/AW | 605 | 26/7 | .1525 | .1186 | .3559 | .966 | 570 | 222 | 792 | 19000 | .0265 | .0327 | 1411 | |
Wood Duck/ACSS/AW | 605 | 30/7 | .142 | .142 | .426 | .994 | 571 | 318 | 889 | 24400 | .026 | .032 | 1439 | |
Teal/ACSS/AW | 605 | 30/19 | .142 | .0852 | .426 | .994 | 571 | 311 | 883 | 25000 | .026 | .032 | 1438 | |
Rook/ACSS/AW | 636 | 24/7 | .1628 | .1085 | .3256 | .977 | 599 | 186 | 785 | 16700 | .0255 | .0314 | 1444 | |
Grosbeak/ACSS/AW | 636 | 26/7 | .1564 | .1216 | .3649 | .991 | 599 | 233 | 832 | 19900 | .0252 | .0311 | 1458 | |
Scoter/ACSS/AW | 636 | 30/7 | .1456 | .1456 | .4368 | 1.019 | 600 | 334 | 935 | 25100 | .0247 | .0305 | 1487 | |
Egret/ACSS/AW | 636 | 30/19 | .1456 | .0874 | .4368 | 1.019 | 600 | 327 | 928 | 26300 | .0247 | .0305 | 1486 | |
Flamingo/ACSS/AW | 666.6 | 24/7 | .1667 | .1111 | .3333 | 1 | 628 | 195 | 823 | 17500 | .0243 | .03 | 1489 | |
Gannet/ACSS/AW | 666.6 | 26/7 | .1601 | .1245 | .3736 | 1.014 | 628 | 245 | 872 | 20900 | .024 | .0297 | 1504 | |
Stilt/ACSS/AW | 715.5 | 24/7 | .1727 | .1151 | .3453 | 1.036 | 674 | 209 | 883 | 18800 | .0226 | .028 | 1559 | |
Starling/ACSS/AW | 715.5 | 26/7 | .1659 | .129 | .3871 | 1.051 | 674 | 263 | 936 | 22000 | .0224 | .0277 | 1576 | |
Redwing/ACSS/AW | 715.5 | 30/19 | .1544 | .0927 | .4633 | 1.081 | 676 | 368 | 1044 | 29500 | .022 | .0272 | 1605 | |
Cuckoo/ACSS/AW | 795 | 24/7 | .182 | .1213 | .364 | 1.092 | 749 | 232 | 981 | 20900 | .0204 | .0252 | 1671 | |
Drake/ACSS/AW | 795 | 26/7 | .1749 | .136 | .408 | 1.107 | 749 | 292 | 1040 | 24400 | .0202 | .025 | 1688 | |
Macaw/ACSS/AW | 795 | 42/7 | .1376 | .0764 | .2293 | 1.055 | 749 | 92 | 841 | 11400 | .0209 | .026 | 1630 | |
Tern/ACSS/AW | 795 | 45/7 | .1329 | .0886 | .2658 | 1.063 | 749 | 124 | 873 | 13500 | .0208 | .026 | 1620 | |
Condor/ACSS/AW | 795 | 54/7 | .1213 | .1213 | .364 | 1.092 | 749 | 232 | 981 | 15800 | .0204 | .026 | 1639 | |
Mallard/ACSS/AW | 795 | 30/19 | .1628 | .0977 | .4884 | 1.139 | 751 | 409 | 1160 | 32900 | .0198 | .0245 | 1721 | |
Ruddy/ACSS/AW | 900 | 45/7 | .1414 | .0943 | .2828 | 1.131 | 848 | 140 | 988 | 15300 | .0183 | .023 | 1767 | |
Canary/ACSS/AW | 900 | 54/7 | .1291 | .1291 | .3873 | 1.162 | 848 | 263 | 1111 | 23200 | .018 | .023 | 1779 | |
Rail/ACSS/AW | 954 | 45/7 | .1456 | .0971 | .2912 | 1.165 | 899 | 149 | 1047 | 16200 | .0173 | .0218 | 1836 | |
Towhee/ACSS/AW | 954 | 48/7 | .141 | .1097 | .329 | 1.175 | 899 | 190 | 1088 | 19000 | .0172 | .0214 | 1858 | |
Cardinal/ACSS/AW | 954 | 54/7 | .1329 | .1329 | .3987 | 1.196 | 899 | 279 | 1177 | 24600 | .017 | .0217 | 1848 | |
Canvasback/ACSS/AW | 954 | 30/19 | .1783 | .107 | .535 | 1.248 | 901 | 491 | 1392 | 39400 | .0165 | .0205 | 1939 | |
Snowbird/ACSS/AW | 1033.5 | 42/7 | .1569 | .0871 | .2614 | 1.203 | 973 | 120 | 1093 | 14800 | .0161 | .0202 | 1934 | |
Curlew/ACSS/AW | 1033.5 | 54/7 | .1383 | .1383 | .415 | 1.245 | 973 | 302 | 1275 | 26100 | .0157 | .0201 | 1948 | |
Bluejay/ACSS/AW | 1113 | 45/7 | .1573 | .1048 | .3145 | 1.258 | 1048 | 173 | 1222 | 18900 | .0148 | .0088 | 2031 | |
Finch/ACSS/AW | 1113 | 54/19 | .1436 | .0861 | .4307 | 1.292 | 1053 | 318 | 1372 | 28800 | .0146 | .0188 | 2040 | |
Bunting/ACSS/AW | 1192.5 | 45/7 | .1628 | .1085 | .3256 | 1.302 | 1123 | 186 | 1309 | 20300 | .0138 | .0176 | 2124 | |
Grackle/ACSS/AW | 1192.5 | 54/19 | .1486 | .0892 | .4458 | 1.337 | 1129 | 341 | 1470 | 30800 | .0137 | .0176 | 2135 | |
Bittern/ACSS/AW | 1272 | 45/7 | .1681 | .1121 | .3362 | 1.345 | 1198 | 198 | 1396 | 21600 | .013 | .0165 | 2215 | |
Pheasant/ACSS/AW | 1272 | 54/19 | .1535 | .0921 | .4604 | 1.381 | 1204 | 364 | 1568 | 32800 | .0128 | .0165 | 2227 | |
Dipper/ACSS/AW | 1351 | 45/7 | .1733 | .1155 | .3465 | 1.386 | 1272 | 210 | 1483 | 23000 | .0122 | .0156 | 2304 | |
Martin/ACSS/AW | 1351 | 54/19 | .1582 | .0949 | .4745 | 1.424 | 1279 | 386 | 1665 | 34900 | .012 | .0156 | 2307 | |
Bobolink/ACSS/AW | 1431 | 45/7 | .1783 | .1189 | .3566 | 1.427 | 1348 | 223 | 1571 | 24300 | .0115 | .0148 | 2391 | |
Plover/ACSS/AW | 1431 | 54/19 | .1628 | .0977 | .4884 | 1.465 | 1354 | 409 | 1764 | 36900 | .0114 | .0148 | 2405 | |
Nuthatch/ACSS/AW | 1510 | 45/7 | .1832 | .1221 | .3664 | 1.465 | 1422 | 235 | 1657 | 25700 | .0109 | .0141 | 2476 | |
Parrot/ACSS/AW | 1510 | 54/19 | .1672 | .1003 | .5017 | 1.505 | 1429 | 432 | 1861 | 38900 | .0108 | .0141 | 2491 | |
Lapwing/ACSS/AW | 1590 | 45/7 | .188 | .1253 | .3759 | 1.504 | 1498 | 248 | 1745 | 27000 | .0104 | .0134 | 2560 | |
Falcon/ACSS/AW | 1590 | 54/19 | .1716 | .103 | .5148 | 1.544 | 1505 | 455 | 1960 | 41100 | .0102 | .0134 | 2576 | |
Chukar/ACSS/AW | 1780 | 84/19 | .1456 | .0873 | .4367 | 1.601 | 1685 | 327 | 2012 | 33600 | .0093 | .012 | 2772 | |
Mockingbird/ACSS/AW | 2034.5 | 72/7 | .1681 | .1121 | .3362 | 1.681 | 1926 | 198 | 2124 | 26500 | .0082 | .0109 | 2972 | |
Roadrunner/ACSS/AW | 2057 | 76/19 | .1645 | .0768 | .3839 | 1.7 | 1947 | 253 | 2200 | 30300 | .0081 | .0108 | 3007 | |
Bluebird/ACSS/AW | 2156 | 84/19 | .1602 | .0961 | .4806 | 1.762 | 2041 | 396 | 2437 | 40700 | .0077 | .0102 | 3130 | |
Kiwi/ACSS/AW | 2167 | 72/7 | .1735 | .1157 | .347 | 1.735 | 2051 | 211 | 2262 | 28200 | .0077 | .0104 | 3092 | |
Thrasher/ACSS/AW | 2312 | 76/19 | .1744 | .0814 | .407 | 1.802 | 2188 | 284 | 2472 | 34100 | .0072 | .0097 | 3235 | |
Joree/ACSS/AW | 2515 | 76/19 | .1819 | .0849 | .4245 | 1.88 | 2380 | 309 | 2689 | 37100 | .0066 | .0091 | 3407 | |
Notes: Data based on a nominal cable manufactured in accordance with ASTM B 856. Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C, and an aluminum-clad steel conductivity of 20.3% IACS at 20°C. Ampacity based on a 200°C conductor temperature, 25°C ambient temperature, 2 ft/sec wind, in sun, with emissivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. (4) Rated strengths based on aluminum-clad steel core wire in accordance with ASTM B 502. |
ACSS/TW American Standard-ASTM B 857
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Supported (ACSS/TW) Area Equal to Standard ACSR Sizes | ||||||||||||||||||||||
Code Word | Size (kcmil) | Type No. | Cross Sectional Stranding | Diameter (in) | Weight (lbs/1000 ft) | Rated Breaking Strength(lbs) | Resistance(ohms/mile) | Ampacity (amps) | ||||||||||||||
Aluminum | Total | No of Layers of Aluminum | No. of Aluminum Wires | No. & Diameter Individual Steel Wire | Steel Core | Complete Cable | Alum. | Steel | Total | Standard Strength | High Strength | HS-285 | DC @ 20°C | AC @ 75°C | @ 75°C | @ 100°C | @ 150°C | @ 200°C | @ 250°C | |||
Partridge/ACSS/TW | 266.8 | 16 | 0.2094 | 0.2435 | 2 | 14 | 7 x 0.0788 | 0.2364 | 0.595 | 250.5 | 115.6 | 366.1 | 8880 | 9730 | 11400 | 0.3262 | 0.4009 | 454 | 553 | 692 | 795 | 880 |
Linnet/ACSS/TW | 336.4 | 16 | 0.2641 | 0.307 | 2 | 16 | 7 x 0.0885 | 0.2655 | 0.667 | 316.1 | 145.8 | 461.9 | 11200 | 12300 | 14400 | 0.2588 | 0.3181 | 523 | 638 | 801 | 921 | 1021 |
Oriole/ACSS/TW | 336.4 | 23 | 0.2642 | 0.3258 | 2 | 16 | 7 x 0.1059 | 0.3177 | 0.692 | 318.2 | 209.2 | 527.4 | 14800 | 16300 | 19100 | 0.2565 | 0.3151 | 533 | 650 | 816 | 940 | 1043 |
Flicker/ACSS/TW | 477 | 13 | 0.3747 | 0.4233 | 2 | 18 | 7 x 0.0940 | 0.282 | 0.776 | 447.8 | 164.5 | 612.3 | 13000 | 14200 | 16400 | 0.1831 | 0.2255 | 648 | 793 | 998 | 1151 | 1279 |
Hawk/ACSS/TW | 477 | 16 | 0.3746 | 0.4356 | 2 | 18 | 7 x 0.1054 | 0.3162 | 0.79 | 448.7 | 206.4 | 655.1 | 15600 | 17100 | 19800 | 0.1825 | 0.2247 | 652 | 799 | 1005 | 1159 | 1289 |
Hen/ACSS/TW | 477 | 23 | 0.3747 | 0.4621 | 2 | 20 | 7 x 0.1261 | 0.3783 | 0.82 | 451.1 | 296.6 | 747.8 | 21000 | 22700 | 26700 | 0.1809 | 0.2225 | 663 | 813 | 1024 | 1181 | 1315 |
Parakeet/ACSS/TW | 556.5 | 13 | 0.4371 | 0.4937 | 2 | 18 | 7 x 0.1015 | 0.3045 | 0.835 | 522.4 | 191.8 | 714.2 | 15200 | 16600 | 19100 | 0.1569 | 0.1935 | 713 | 874 | 1102 | 1271 | 1415 |
Dove/ACSS/TW | 556.5 | 16 | 0.4371 | 0.5083 | 2 | 20 | 7 x 0.1138 | 0.3414 | 0.85 | 523.4 | 241.1 | 764.5 | 18200 | 19900 | 23100 | 0.1564 | 0.1928 | 719 | 881 | 1111 | 1282 | 1427 |
Rook/ACSS/TW | 636 | 13 | 0.4995 | 0.5643 | 2 | 20 | 7 x 0.1085 | 0.3255 | 0.893 | 597 | 219.2 | 816.2 | 17300 | 19000 | 21900 | 0.1373 | 0.1696 | 775 | 951 | 1200 | 1386 | 1544 |
Grosbeak/ACSS/TW | 636 | 16 | 0.4995 | 0.5808 | 2 | 20 | 7 x 0.1216 | 0.3648 | 0.909 | 601.5 | 275.8 | 877.3 | 20700 | 22400 | 26000 | 0.1369 | 0.1689 | 781 | 958 | 1210 | 1398 | 1557 |
Scoter/ACSS/TW | 636 | 23 | 0.4995 | 0.616 | 2 | 22 | 7 x 0.1456 | 0.4368 | 0.942 | 600.5 | 394.7 | 995.2 | 27400 | 29700 | 35000 | 0.1356 | 0.1672 | 795 | 976 | 1234 | 1427 | 1591 |
Tern/ACSS/TW | 795 | 7 | 0.6244 | 0.6675 | 2 | 17 | 7 x 0.0886 | 0.2658 | 0.96 | 745.2 | 146.1 | 891.3 | 14200 | 15200 | 17400 | 0.1105 | 0.1373 | 878 | 1080 | 1366 | 1580 | 1762 |
Puffin/ACSS/TW | 795 | 11 | 0.6244 | 0.6919 | 2 | 18 | 7 x 0.1056 | 0.3168 | 0.98 | 745.9 | 228.5 | 974.4 | 17700 | 19200 | 22000 | 0.1101 | 0.1365 | 886 | 1090 | 1378 | 1595 | 1778 |
Condor/ACSS/TW | 795 | 13 | 0.6244 | 0.7053 | 2 | 20 | 7 x 0.1213 | 0.3639 | 0.993 | 746.3 | 273.9 | 1020 | 21700 | 23300 | 26900 | 0.1098 | 0.1361 | 890 | 1095 | 1386 | 1604 | 1789 |
Drake/ACSS/TW | 795 | 16 | 0.6244 | 0.7261 | 2 | 20 | 7 x 0.1360 | 0.408 | 1.01 | 747 | 344.3 | 1091.3 | 25900 | 28000 | 32600 | 0.1095 | 0.1355 | 896 | 1103 | 1396 | 1616 | 1803 |
Canary/ACSS/TW | 900 | 13 | 0.7069 | 0.7983 | 2 | 20 | 7 x 0.1291 | 0.3873 | 1.055 | 844.8 | 310.9 | 1155.7 | 24600 | 26400 | 30500 | 0.097 | 0.1205 | 962 | 1185 | 1501 | 1739 | 1942 |
Phoenix/ACSS/TW | 954 | 5 | 0.7493 | 0.7876 | 3 | 30 | 7 x 0.0837 | 0.2511 | 1.044 | 897.7 | 130.4 | 1028 | 14200 | 15200 | 17100 | 0.0927 | 0.1187 | 967 | 1189 | 1503 | 1740 | 1940 |
Rail/ACSS/TW | 954 | 7 | 0.7493 | 0.8011 | 3 | 32 | 7 x 0.0971 | 0.2913 | 1.061 | 898.6 | 175.5 | 1074.1 | 16700 | 18000 | 20400 | 0.0926 | 0.1183 | 972 | 1196 | 1512 | 1750 | 1953 |
Cardinal/ACSS/TW | 954 | 13 | 0.7493 | 0.8464 | 2 | 20 | 7 x 0.1329 | 0.3987 | 1.08 | 895.5 | 328.8 | 1224.3 | 26000 | 28000 | 32300 | 0.0915 | 0.1138 | 997 | 1229 | 1558 | 1806 | 2016 |
Snowbird/ACSS/TW | 1033.5 | 5 | 0.8117 | 0.8534 | 3 | 30 | 7 x 0.0871 | 0.2613 | 1.089 | 972.5 | 141.2 | 1114 | 15400 | 16400 | 18500 | 0.0856 | 0.1098 | 1016 | 1251 | 1584 | 1834 | 2048 |
Ortolan/ACSS/TW | 1033.5 | 7 | 0.8117 | 0.8678 | 3 | 32 | 7 x 0.1010 | 0.303 | 1.102 | 972.5 | 189.9 | 1162 | 18100 | 19500 | 22000 | 0.0854 | 0.1095 | 1021 | 1257 | 1592 | 1843 | 2058 |
Curlew/ACSS/TW | 1033.5 | 13 | 0.8117 | 0.9169 | 2 | 22 | 7 x 0.1383 | 0.4149 | 1.132 | 970.1 | 356.1 | 1326.2 | 28200 | 30300 | 35000 | 0.0845 | 0.1053 | 1048 | 1293 | 1641 | 1903 | 2126 |
Avocet/ACSS/TW | 1113 | 5 | 0.8742 | 0.9191 | 3 | 30 | 7 x 0.0904 | 0.2712 | 1.129 | 1047 | 152.1 | 1199 | 16300 | 17500 | 19500 | 0.0794 | 0.1022 | 1063 | 1310 | 1661 | 1925 | 2150 |
Bluejay/ACSS/TW | 1113 | 7 | 0.8742 | 0.9347 | 3 | 33 | 7 x 0.1049 | 0.3147 | 1.143 | 1048 | 204.8 | 1253 | 19500 | 21000 | 23800 | 0.0793 | 0.1019 | 1068 | 1317 | 1669 | 1935 | 2161 |
Finch/ACSS/TW | 1113 | 13 | 0.8743 | 0.9852 | 3 | 38 | 19 x 0.0862 | 0.431 | 1.185 | 1051 | 376.1 | 1427 | 30400 | 33200 | 38700 | 0.0789 | 0.101 | 1084 | 1336 | 1695 | 1965 | 2196 |
Oxbird/ACSS/TW | 1192.5 | 5 | 0.9366 | 0.9848 | 3 | 30 | 7 x 0.0936 | 0.2808 | 1.17 | 1122.9 | 163.1 | 1286 | 17500 | 18700 | 20900 | 0.0741 | 0.0957 | 1108 | 1367 | 1735 | 2013 | 2249 |
Bunting/ACSS/TW | 1192.5 | 7 | 0.9366 | 1.0013 | 3 | 34 | 7 x 0.1085 | 0.3255 | 1.181 | 1123.2 | 219.6 | 1342.8 | 20900 | 22500 | 25400 | 0.074 | 0.0954 | 1114 | 1374 | 1744 | 2023 | 2261 |
Grackle/ACSS/TW | 1192.5 | 13 | 0.9366 | 1.0554 | 3 | 38 | 19 x 0.0892 | 0.446 | 1.225 | 1127.8 | 402.9 | 1530.7 | 32600 | 35500 | 41500 | 0.0737 | 0.0944 | 1130 | 1395 | 1771 | 2055 | 2298 |
Scissortail/ACSS/TW | 1272 | 5 | 0.9991 | 1.0505 | 3 | 30 | 7 x 0.0967 | 0.2901 | 1.203 | 1197 | 174 | 1371 | 18700 | 20000 | 22300 | 0.0695 | 0.09 | 1152 | 1423 | 1807 | 2098 | 2346 |
Bittern/ACSS/TW | 1272 | 7 | 0.999 | 1.0681 | 3 | 38 | 7 x 0.1121 | 0.3363 | 1.224 | 1197.6 | 234.9 | 1432.5 | 22300 | 24000 | 27100 | 0.0694 | 0.0897 | 1159 | 1431 | 1817 | 2110 | 2360 |
Pheasant/ACSS/TW | 1272 | 13 | 0.999 | 1.1256 | 3 | 39 | 19 x 0.0921 | 0.4605 | 1.26 | 1201 | 429.5 | 1630.5 | 34100 | 37300 | 43000 | 0.0691 | 0.0887 | 1176 | 1452 | 1846 | 2143 | 2398 |
Dipper/ACSS/TW | 1351.5 | 7 | 1.0615 | 1.1348 | 3 | 35 | 7 x 0.1155 | 0.3465 | 1.256 | 1273 | 248.3 | 1521 | 23700 | 25500 | 28800 | 0.0653 | 0.0847 | 1202 | 1485 | 1888 | 2194 | 2455 |
Martin/ACSS/TW | 1351.5 | 13 | 1.0615 | 1.1959 | 3 | 42 | 19 x 0.0949 | 0.4745 | 1.3 | 1276.1 | 456 | 1732.1 | 36200 | 39600 | 45600 | 0.065 | 0.0837 | 1220 | 1508 | 1918 | 2228 | 2494 |
Bobolink/ACSS/TW | 1431 | 7 | 1.1236 | 1.2017 | 3 | 36 | 7 x 0.1189 | 0.3567 | 1.291 | 1347 | 263.1 | 1611 | 25100 | 27000 | 30500 | 0.0617 | 0.0802 | 1243 | 1538 | 1958 | 2276 | 2549 |
Plover/ACSS/TW | 1431 | 13 | 1.1239 | 1.2664 | 3 | 44 | 19 x 0.0977 | 0.4885 | 1.337 | 1351 | 483.2 | 1834 | 38400 | 41900 | 48300 | 0.0614 | 0.0793 | 1263 | 1562 | 1989 | 2313 | 2590 |
Lapwing/ACSS/TW | 1590 | 7 | 1.2488 | 1.3351 | 3 | 36 | 7 x 0.1253 | 0.3759 | 1.358 | 1497.6 | 292.3 | 1789.9 | 27900 | 29600 | 33500 | 0.0555 | 0.0727 | 1324 | 1640 | 2092 | 2435 | 2730 |
Falcon/ACSS/TW | 1590 | 13 | 1.2488 | 1.4071 | 3 | 42 | 19 x 0.1030 | 0.515 | 1.41 | 1502.8 | 537.2 | 2040 | 42600 | 46600 | 53700 | 0.0553 | 0.0717 | 1346 | 1668 | 2127 | 2477 | 2777 |
Chukar/ACSS/TW | 1780 | 8 | 1.3986 | 1.5126 | 3 | 38 | 19 x 0.0874 | 0.437 | 1.445 | 1680.6 | 386.8 | 2067.4 | 35300 | 38200 | 43900 | 0.0495 | 0.0652 | 1421 | 1764 | 2255 | 2630 | 2952 |
Bluebird/ACSS/TW | 2156 | 8 | 1.6933 | 1.8309 | 4 | 64 | 19 x 0.0961 | 0.4805 | 1.608 | 2045 | 467.5 | 2512 | 42100 | 45500 | 51700 | 0.0412 | 0.0543 | 1601 | 1999 | 2573 | 3014 | 3396 |
1) Data based on a nominal cable manufactured in accordance with ASTM B 857. | ||||||||||||||||||||||
2) Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C and a steel conductivity of 8% IACS at 20°C. | ||||||||||||||||||||||
3) Ampacity based on referenced conductor temperature, 25°C ambient temperature, 2 ft/sec wind, in sun, with an emmisivity of 0.5 4) and a coefficient of solar absorption of 0.5, at sea level. | ||||||||||||||||||||||
4) Rated breaking strength for standard core based on Class A Galfan coated steel core wire in accordance with ASTM B 802. | ||||||||||||||||||||||
5) Rated strength for high strength core based on Class A Galfan coated high strength steel core wire in accordance with ASTM B 803. | ||||||||||||||||||||||
6) The final design of a shaped wire compact conductor is contingent upon several factors such as: layer diameter, wire width and wire thickness. 7) The actual configuration of a given size may vary between manufacturers. 8) This may result in a slight variation in the number of wires, number of layers and dimensions of individual wires from that shown in the chart. |
ACSS/TW American Standard-ASTM B 857
Shaped Wire Concentric-Lay Compact Aluminum Conductors Steel Supported (ACSS/TW) Diameter Equal to Standard ACSR Sizes | ||||||||||||||||||||||
Code Word | Size (kcmil) | Type No. | Cross Sectional Area (in2) | Stranding | Diameter (in) | Weight (lbs/1000 ft) | Rated Breaking Strength (lbs) | Resistance (ohms/mile) | Ampacity (amps) | |||||||||||||
Aluminum | Total | No of Layers of Aluminum | No. of Aluminum Wires | No. & Diameter Individual Steel Wire | Steel Core | Complete Cable | Alum. | Steel | Total | Standard Strength | High Strength | HS-285 | DC @ 20°C | AC @ 75°C | @ 75°C | @ 100°C | @ 150°C | @ 200°C | @ 250°C | |||
Mohawk/ACSS/TW | 571.7 | 13 | 0.449 | 0.5074 | 2 | 18 | 7 x 0.1030 | 0.309 | 0.85 | 537 | 197.5 | 734.5 | 15600 | 17100 | 19700 | 0.1527 | 0.1884 | 725 | 889 | 1121 | 1294 | 1441 |
Calumet/ACSS/TW | 565.3 | 16 | 0.4439 | 0.5162 | 2 | 20 | 7 x 0.1146 | 0.3438 | 0.86 | 531.2 | 244.5 | 775.7 | 18400 | 20200 | 23500 | 0.154 | 0.1898 | 725 | 890 | 1122 | 1295 | 1442 |
Mystic/ACSS/TW | 666.6 | 13 | 0.5236 | 0.5914 | 2 | 20 | 7 x 0.1244 | 0.3732 | 0.913 | 630.4 | 230.3 | 860.7 | 18200 | 19900 | 22900 | 0.131 | 0.1619 | 798 | 980 | 1238 | 1431 | 1595 |
Oswego/ACSS/TW | 664.8 | 16 | 0.5221 | 0.6072 | 2 | 20 | 7 x 0.1244 | 0.3732 | 0.927 | 628.7 | 288.7 | 917.4 | 21700 | 23400 | 27200 | 0.1309 | 0.1616 | 802 | 985 | 1244 | 1439 | 1604 |
Maumee/ACSS/TW | 768.2 | 13 | 0.6034 | 0.6819 | 2 | 20 | 7 x 0.1195 | 0.3585 | 0.977 | 721.1 | 265.9 | 987 | 21000 | 23000 | 26500 | 0.1137 | 0.1407 | 872 | 1072 | 1356 | 1569 | 1750 |
Wabash/ACSS/TW | 762.8 | 16 | 0.5992 | 0.6966 | 2 | 20 | 7 x 0.1331 | 0.3993 | 0.99 | 716.7 | 329.8 | 1046.5 | 24900 | 26800 | 31200 | 0.1141 | 0.1411 | 873 | 1074 | 1359 | 1573 | 1755 |
Kettle/ACSS/TW | 957.2 | 7 | 0.7518 | 0.8038 | 3 | 32 | 7 x 0.0973 | 0.2919 | 1.06 | 901.6 | 176.2 | 1078 | 16800 | 18100 | 20400 | 0.0922 | 0.118 | 973 | 1197 | 1514 | 1753 | 1955 |
Fraser/ACSS/TW | 946.7 | 10 | 0.7436 | 0.8168 | 3 | 35 | 7 x 0.1154 | 0.3462 | 1.077 | 892.6 | 247.9 | 1141 | 21100 | 22900 | 26200 | 0.093 | 0.1187 | 974 | 1199 | 1517 | 1756 | 1959 |
Columbia/ACSS/TW | 966.2 | 13 | 0.7589 | 0.8573 | 2 | 21 | 7 x 0.1338 | 0.4014 | 1.092 | 906.9 | 333.2 | 1240 | 26400 | 28300 | 32800 | 0.0904 | 0.1124 | 1005 | 1239 | 1571 | 1822 | 2035 |
Suwannee/ACSS/TW | 959.6 | 16 | 0.7537 | 0.8762 | 2 | 22 | 7 x 0.1493 | 0.4479 | 1.11 | 901.6 | 415 | 1316.6 | 30700 | 33100 | 38600 | 0.0907 | 0.1127 | 1008 | 1243 | 1576 | 1828 | 2042 |
Cheyenne/ACSS/TW | 1168.1 | 5 | 0.9175 | 0.9646 | 3 | 30 | 7 x 0.0926 | 0.2778 | 1.155 | 1099 | 159.6 | 1259 | 17200 | 18300 | 20500 | 0.0757 | 0.0979 | 1095 | 1350 | 1712 | 1986 | 2219 |
Genesee/ACSS/TW | 1158 | 7 | 0.9095 | 0.9733 | 3 | 34 | 7 x 0.1078 | 0.3234 | 1.165 | 1092 | 216 | 1308 | 20500 | 22100 | 25000 | 0.0762 | 0.0981 | 1094 | 1350 | 1712 | 1985 | 2218 |
Hudson/ACSS/TW | 1158.4 | 13 | 0.9098 | 1.0281 | 2 | 24 | 7 x 0.1467 | 0.4401 | 1.196 | 1087.3 | 400.7 | 1488 | 31100 | 33500 | 38800 | 0.0754 | 0.0943 | 1124 | 1389 | 1766 | 2051 | 2295 |
Catawba/ACSS/TW | 1272 | 5 | 0.9991 | 1.0505 | 3 | 30 | 7 x 0.0967 | 0.2901 | 1.203 | 1197 | 174 | 1371 | 18700 | 20000 | 22300 | 0.0695 | 0.09 | 1152 | 1423 | 1807 | 2098 | 2346 |
Nelson/ACSS/TW | 1257.1 | 7 | 0.9874 | 1.0557 | 3 | 35 | 7 x 0.1115 | 0.3345 | 1.213 | 1184 | 231.4 | 1415 | 22100 | 23800 | 26900 | 0.0702 | 0.0907 | 1150 | 1420 | 1804 | 2094 | 2342 |
Yukon/ACSS/TW | 1233.6 | 13 | 0.9689 | 1.0925 | 3 | 38 | 19 x 0.0910 | 0.455 | 1.245 | 1166.7 | 419.3 | 1586 | 33200 | 36300 | 41900 | 0.0712 | 0.0914 | 1154 | 1425 | 1810 | 2101 | 2350 |
Truckee/ACSS/TW | 1372.5 | 5 | 1.078 | 1.1334 | 3 | 30 | 7 x 0.1004 | 0.3012 | 1.248 | 1292 | 187.6 | 1479 | 20200 | 21500 | 24000 | 0.0644 | 0.0838 | 1206 | 1491 | 1896 | 2203 | 2466 |
Mackenzie/ACSS/TW | 1359.7 | 7 | 1.0679 | 1.1418 | 3 | 36 | 7 x 0.1159 | 0.3477 | 1.259 | 1281 | 250 | 1531 | 23900 | 25700 | 29000 | 0.0649 | 0.0842 | 1206 | 1490 | 1895 | 2202 | 2465 |
Thames/ACSS/TW | 1334.6 | 13 | 1.048 | 1.1809 | 3 | 38 | 19 x 0.0944 | 0.472 | 1.29 | 1260.1 | 451.2 | 1711.3 | 35800 | 39100 | 45100 | 0.0658 | 0.0847 | 1210 | 1495 | 1902 | 2209 | 2472 |
St. Croix/ACSS/TW | 1467.8 | 5 | 1.1529 | 1.2124 | 3 | 33 | 7 x 0.1041 | 0.3123 | 1.292 | 1381 | 201.7 | 1583 | 21600 | 23100 | 25800 | 0.0602 | 0.0787 | 1256 | 1554 | 1979 | 2302 | 2578 |
Miramichi/ACSS/TW | 1455.3 | 7 | 1.143 | 1.2222 | 3 | 36 | 7 x 0.1200 | 0.36 | 1.302 | 1372 | 268 | 1640 | 25600 | 27100 | 30700 | 0.0607 | 0.079 | 1269 | 1573 | 2007 | 2338 | 2577 |
Merrimack/ACSS/TW | 1433.6 | 13 | 1.125 | 1.2677 | 3 | 39 | 19 x 0.0978 | 0.489 | 1.34 | 1355.8 | 484.3 | 1840.1 | 38400 | 42000 | 48400 | 0.0613 | 0.0791 | 1277 | 1584 | 2021 | 2354 | 2595 |
Platte/ACSS/TW | 1569 | 5 | 1.2323 | 1.2957 | 3 | 33 | 7 x 0.1074 | 0.3222 | 1.334 | 1478 | 215 | 1693 | 23100 | 24600 | 27500 | 0.0564 | 0.074 | 1319 | 1637 | 2092 | 2439 | 2692 |
Potomac/ACSS/TW | 1557.4 | 7 | 1.2232 | 1.3079 | 3 | 36 | 7 x 0.1241 | 0.3723 | 1.35 | 1466.9 | 288.1 | 1755 | 27300 | 29000 | 32800 | 0.0567 | 0.0741 | 1321 | 1639 | 2094 | 2441 | 2694 |
Rio Grande/ACSS/TW | 1533.3 | 13 | 1.2043 | 1.3571 | 3 | 38 | 19 x 0.1012 | 0.506 | 1.38 | 1449 | 519 | 1968 | 41200 | 45000 | 51900 | 0.0573 | 0.0742 | 1329 | 1650 | 2108 | 2456 | 2710 |
Schuylkill/ACSS/TW | 1657.4 | 7 | 1.302 | 1.392 | 3 | 36 | 7 x 0.1280 | 0.384 | 1.386 | 1563 | 305 | 1868 | 29100 | 30900 | 34900 | 0.0533 | 0.07 | 1370 | 1702 | 2177 | 2539 | 2805 |
Pecos/ACSS/TW | 1622 | 13 | 1.2739 | 1.4429 | 3 | 39 | 19 x 0.1064 | 0.532 | 1.42 | 1533.7 | 573.2 | 2106.9 | 45000 | 49300 | 56900 | 0.0541 | 0.0703 | 1377 | 1710 | 2187 | 2551 | 2816 |
Pee Dee/ACSS/TW | 1758.6 | 7 | 1.381 | 1.477 | 3 | 38 | 7 x 0.1319 | 0.3957 | 1.427 | 1656.4 | 323.9 | 1980.3 | 30900 | 32800 | 37100 | 0.0502 | 0.0663 | 1418 | 1763 | 2259 | 2637 | 2916 |
James/ACSS/TW | 1730.6 | 13 | 1.359 | 1.5314 | 3 | 34 | 19 x 0.1075 | 0.5375 | 1.47 | 1636 | 585 | 2221 | 46400 | 50800 | 58500 | 0.0508 | 0.0663 | 1430 | 1778 | 2277 | 2657 | 2937 |
Athabaska/ACSS/TW | 1949.6 | 7 | 1.5312 | 1.6377 | 3 | 44 | 7 x 0.1392 | 0.4176 | 1.504 | 1836 | 360.7 | 2197 | 34300 | 36500 | 41300 | 0.0453 | 0.0595 | 1505 | 1873 | 2403 | 2808 | 3157 |
Cumberland/ACSS/TW | 1926.9 | 13 | 1.5134 | 1.7049 | 3 | 42 | 19 x 0.1133 | 0.5665 | 1.55 | 1821 | 650 | 2471 | 51600 | 56400 | 65000 | 0.0456 | 0.06 | 1508 | 1875 | 2400 | 2802 | 3148 |
Powder/ACSS/TW | 2153.8 | 8 | 1.6912 | 1.829 | 4 | 64 | 19 x 0.0961 | 0.4805 | 1.602 | 2042.5 | 396.1 | 2438.6 | 42100 | 45500 | 51700 | 0.0412 | 0.0543 | 1599 | 1996 | 2569 | 3009 | 3391 |
Santee/ACSS/TW | 2627.3 | 8 | 2.063 | 2.2268 | 4 | 64 | 19 x 0.1062 | 0.531 | 1.761 | 2491.5 | 571.1 | 3062.6 | 51300 | 55600 | 63100 | 0.0338 | 0.0459 | 1784 | 2237 | 2894 | 3403 | 3846 |
Data based on a nominal cable manufactured in accordance with ASTM B 857. | ||||||||||||||||||||||
Resistance and ampacity based on an aluminum conductivity of 63% IACS at 20°C and a steel conductivity of 8% IACS at 20°C. | ||||||||||||||||||||||
Ampacity based on referenced conductor temperature, 25°C ambient temperature, 2 ft/sec wind, in sun, with an emmisivity of 0.5 and a coefficient of solar absorption of 0.5, at sea level. | ||||||||||||||||||||||
Rated breaking strength for standard core based on Class A Galfan coated steel core wire in accordance with ASTM B 802. | ||||||||||||||||||||||
Rated strength for high strength core based on Class A Galfan coated high strength steel core wire in accordance with ASTM B 803. | ||||||||||||||||||||||
The final design of a shaped wire compact conductor is contingent upon several factors such as: layer diameter, wire width and wire thickness. The actual configuration of a given size may vary between manufacturers. This may result in a slight variation in the number of wires, number of layers and dimensions of individual wires from that shown in the chart. |
