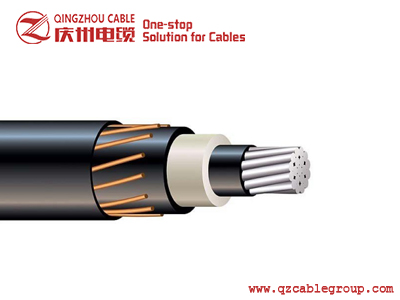

Primary UD TRXLPE PVC Concentric Neutral 5-46kv



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241
Application Predominantly used for primary underground […]



Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 236

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 237

Notice: Undefined variable: case in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 239

Notice: Undefined variable: ex_word in /www/wwwroot/cn.qzcablegroup.com/wp-content/themes/qzcable/functions.php on line 241

Application

Predominantly used for primary underground distribution in conduit systems; suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight. The engineered polyethylene jacket allows the cable to slide through duct with less friction, resulting in longer pulls or longer pushes with less lubricant, or in some cases, no lubricant at all. To be used at 5-46 kv or less and at conductor temperatures not to exceed 90°C for normal operation.

Specifications

QINGZHOU 15kV MV Primary UD Cable meets or exceeds the following ASTM specifications:

• B-3 Soft Annealed Copper Wire.

• B-8 Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard or Soft.

• B-230 Aluminum, 1350-H19 Wire for Electrical Purposes.

• B-231 Aluminum 1350 Conductors, Concentric-Lay-Stranded.

• B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

QINGZHOU 15kV MV Primary UD Cable is manufactured to the latest edition of the following specifications, and in case of specification conflicts, in the order listed:

• ANSI/ICEA S-94-649

• AEIC CS-8

• RUS U-1

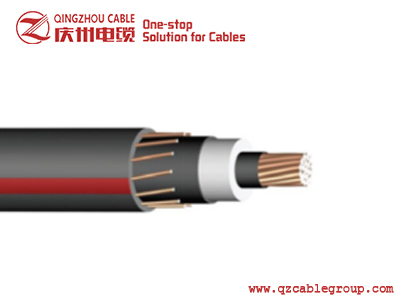

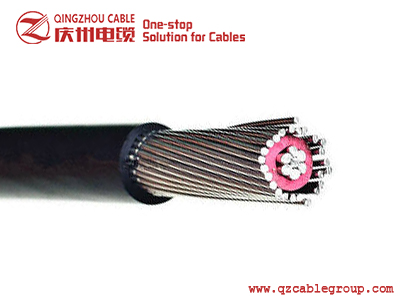

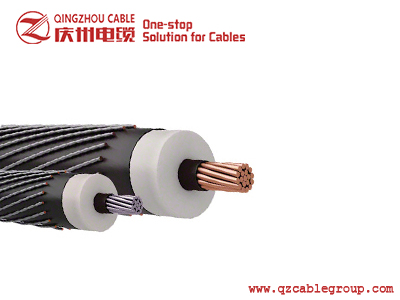

Construction

The phase conductor is concentrically stranded, compressed soft copper or 1350-H16/26 aluminum alloy. The cable is composed of the conductor, covered by a semi-conducting cross-linked polyethylene strand shield, a tree-retardant cross-linked polyethylene primary insulation, and a semi-conducting cross-linked polyethylene insulation shield. Conductors are available with either 100% or 133% insulation levels. A concentric neutral of bare copper wires and an insulating engineered polyethylene jacket are applied over the insulation shield. The cable is identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket. A semi-conducting engineered polyethylene jacket is available upon request.

PARAMETER

5kv TR-XLPE Insulated

Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation 1/3Neutral Full Neutral
Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft AWG mil in Lb/kft
Copper 100% Insulation Level (90 mil)
2 7 0.50 6 14 60 0.83 472 16 14 60 0.83 606
1 19 0.54 7 14 60 0.87 551 13 12 80 0.95 775
1/0 19 0.58 9 14 80 0.95 697 16 12 80 0.99 922
2/0 19 0.63 11 14 80 1.00 826 13 10 80 1.07 1131
3/0 19 0.68 14 14 80 1.05 993 16 10 80 1.12 1359
4/0 19 0.73 18 14 80 1.10 1204 16 9 80 1.20 1662
250 37 0.79 13 12 80 1.19 1385 25 10 80 1.23 1961
350 37 0.89 18 12 80 1.29 1841 22 8 80 1.39 2656
500 37 1.02 17 10 80 1.49 2578 31 8 80 1.54 3678
750 61 1.21 20 9 110 1.77 3815
1000 61 1.36 26 9 110 1.91 4912
Aluminum 100% Insulation Level (90 mil)
2 7 0.50 6 14 60 0.83 330 10 14 60 0.83 383
1 19 0.54 6 14 80 0.91 395 13 14 80 0.91 489
1/0 19 0.58 6 14 80 0.95 431 16 14 80 0.95 564
2/0 19 0.62 7 14 80 1.00 488 13 12 80 1.03 676
3/0 19 0.67 9 14 80 1.05 567 16 12 80 1.08 792
4/0 19 0.73 11 14 80 1.10 657 13 10 80 1.18 962
250 37 0.79 13 14 80 1.16 741 16 10 80 1.24 1121
350 37 0.89 18 14 80 1.26 942 16 9 80 1.36 1400
500 37 1.02 16 12 80 1.45 1261 29 10 80 1.49 1908
750 61 1.22 15 10 110 1.76 1872
1000 61 1.37 16 9 110 1.93 2360
MORE

8kv TR-XLPE Insulated

Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation 1/3Neutral Full Neutral
Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft AWG mil in Lb/kft
Copper 100% Insulation Level (115 mil)
2 7 0.55 6 14 60 0.88 498 16 14 60 0.88 632
1 19 0.59 7 14 60 0.96 617 13 12 80 1.00 805
1/0 19 0.63 9 14 80 1.00 728 16 12 80 1.04 953
2/0 19 0.68 11 14 80 1.05 858 13 10 80 1.12 1163
3/0 19 0.73 14 14 80 1.10 1027 16 10 80 1.17 1393
4/0 19 0.78 18 14 80 1.15 1240 16 9 80 1.25 1697
250 37 0.84 13 12 80 1.24 1423
350 37 0.94 18 12 80 1.35 1881
500 37 1.07 17 10 80 1.54 2624
750 61 1.26 20 9 110 1.82 3870
1000 61 1.41 26 9 110 1.97 4972
Aluminum 100% Insulation Level (115 mil)
2 7 0.55 6 14 80 0.90 393 10 14 80 0.92 447
1 19 0.59 6 14 80 0.96 424 13 14 80 0.96 518
1/0 19 0.63 6 14 80 1.00 461 16 14 80 1.00 595
2/0 19 0.68 7 14 80 1.05 520 13 12 80 1.08 708
3/0 19 0.73 9 14 80 1.10 600 16 12 80 1.13 825
4/0 19 0.78 11 14 80 1.15 693 13 10 80 1.23 998
250 37 0.84 13 14 80 1.21 778 16 10 80 1.29 1158
350 37 0.94 18 14 80 1.31 983 16 9 80 1.41 1440
500 37 1.07 16 12 80 1.50 1307 29 10 80 1.54 1954
750 61 1.27 15 10 110 1.81 1927
1000 61 1.42 16 9 110 1.98 2419
MORE

15kv TR-XLPE Insulated

Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation 1/3Neutral Full Neutral
Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft AWG mil in Lb/kft
Copper 100% Insulation Level (175 mil)
2 1 0.68 6 14 80 1.05 610
2 7 0.68 6 14 80 1.05 610 16 14 80 1.05 743
1 19 0.71 7 14 80 1.09 694 13 12 80 1.12 883
1/0 19 0.75 9 14 80 1.13 808 16 12 80 1.16 1034
2/0 19 0.80 11 14 80 1.17 942 13 10 80 1.25 1247
3/0 19 0.85 14 14 80 1.22 1115 16 10 80 1.30 1481
4/0 19 0.90 18 14 80 1.28 1332 16 9 80 1.38 1790
250 37 0.96 13 12 80 1.37 1519 25 10 80 1.41 2095
350 37 1.06 18 12 80 1.49 2011 22 8 80 1.59 2826
500 37 1.19 17 10 80 1.66 2741 31 8 110 1.78 3947
750 61 1.38 20 9 110 1.94 4008
1000 61 1.53 26 9 110 2.12 5170
Aluminum 100% Insulation Level (175 mil)
2 7 0.67 6 14 80 1.05 467 10 14 80 1.05 520
1 19 0.71 6 14 80 1.08 501 13 14 80 1.08 595
1/0 19 0.75 6 14 80 1.12 541 16 14 80 1.12 675
2/0 19 0.80 7 14 80 1.17 603 13 12 80 1.20 791
3/0 19 0.85 9 14 80 1.22 687 16 12 80 1.25 912
4/0 19 0.90 11 14 80 1.27 784 13 10 80 1.35 1089
250 37 0.96 13 14 80 1.33 874 16 10 80 1.41 1253
350 37 1.06 18 14 80 1.46 1110 16 9 80 1.56 1568
500 37 1.19 16 12 80 1.62 1422 29 10 80 1.66 2069
750 61 1.40 24 12 110 1.89 2059
750 61 1.40 15 10 110 1.93 2065
1000 61 1.54 16 9 110 2.13 2616
MORE

15kv TR-XLPE Insulated<

Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation 1/3Neutral Full Neutral
Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft AWG mil in Lb/kft
Copper 133% Insulation Level (220 mil)
2 7 0.77 6 14 80 1.14 672 16 14 80 1.14 805
1 19 0.81 7 14 80 1.18 759 13 12 80 1.21 947
1/0 19 0.85 9 14 80 1.22 875 16 12 80 1.25 1100
2/0 19 0.89 11 14 80 1.26 1012 13 10 80 1.34 1316
3/0 19 0.94 14 14 80 1.31 1187 16 10 80 1.39 1553
4/0 19 1.00 18 14 80 1.37 1407 16 9 80 1.47 1865
250 37 1.05 13 12 80 1.48 1622 25 10 80 1.52 2198
350 37 1.16 18 12 80 1.58 2097 22 8 80 1.68 2912
500 37 1.28 17 10 110 1.82 2943 31 8 110 1.87 4046
750 61 1.47 20 9 110 2.03 4118
1000 61 1.62 26 9 110 2.21 5291
Aluminum 133% Insulation Level (220 mil)
2 7 0.76 6 14 80 1.14 528 10 14 80 1.14 582
1 19 0.80 6 14 80 1.18 565 13 14 80 1.18 658
1/0 19 0.84 6 14 80 1.22 607 16 14 80 1.22 641
2/0 19 0.89 7 14 80 1.26 671 13 12 80 1.29 859
3/0 19 0.94 9 14 80 1.31 758 16 12 80 1.34 983
4/0 19 0.99 11 14 80 1.37 858 13 10 80 1.44 1163
250 37 1.05 13 14 80 1.44 975 16 10 80 1.52 1355
350 37 1.15 18 14 80 1.55 1195 16 9 80 1.65 1653
500 37 1.28 16 12 110 1.77 1622 29 10 110 1.81 2272
750 61 1.49 15 10 110 2.02 2175
1000 61 1.64 16 9 110 2.123 2737
MORE

25kv TR-XLPE Insulated

1/3Neutral Full Neutral
Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft in AWG miol in Lb/kft
Copper 100% Insulation Level (260mil)
1 19 0.89 7 14 80 1.26 820 1 19 0..89 13 12 80 1.29 1009
1/0 19 0.93 9 14 80 1.30 939 1/0 19 0.93 16 12 80 1.33 1164
2/0 19 0.97 11 14 80 1.34 1077 2/0 19 0.97 32 14 80 1.34 1358
3/0 19 1.02 14 14 80 1.42 1280 2/0 19 0.97 20 12 80 1.38 1361
4/0 19 1.08 18 14 80 1.47 1504 2/0 19 0.97 13 10 80 1.42 1382
250 37 1.13 13 12 80 1.56 1698 3/0 19 1.02 16 10 80 1.49 1646
350 37 1.24 18 12 80 1.66 2178 4/0 19 1.08 16 9 80 1.57 1961
500 37 1.37 17 10 110 1.90 3035 250 37 1.13 25 10 80 1.60 2274
750 61 1.56 20 9 110 2.14 4269 350 37 1.24 22 8 110 1.82 3102
1000 61 1.70 26 9 110 2.29 5403 500 37 1.37 31 8 110 1.95 4139
Aluminum 100% Insulation Level(260mil)
1 19 0.88 6 14 80 1.26 626 1 19 0.88 13 14 80 1.26 719
1/0 19 0.92 6 14 80 1.30 670 1/0 19 0.92 16 14 80 1.30 804
2/0 19 0.97 7 14 80 1.34 736 2/0 19 0.97 13 12 80 1.37 925
3/0 19 1.02 9 14 80 1.41 849 3/0 19 1.02 16 12 80 1.45 1075
4/0 19 1.07 11 14 80 1.47 953 4/0 19 1.07 13 10 80 1.54 1258
250 37 1.13 13 14 80 1.53 1050 250 37 1.13 16 10 80 1.60 1430
350 37 1.23 18 14 80 1.63 1275 350 37 1.23 16 9 110 1.79 1842
500 37 1.36 16 12 110 1.85 1714 500 37 1.36 29 10 110 1.90 2363
750 61 1.57 15 10 110 2.13 2325
1000 61 1.72 16 9 110 2.31 2848
MORE

25kv TR-XLPE Insulated

1/3Neutral Full Neutral
Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft in AWG miol in Lb/kft
Copper 133% Insulation Level (320mil)
1/0 19 1.05 9 14 80 1.44 1067 1/0 19 1.05 16 12 80 1.48 1292
2/0 19 1.09 11 14 80 1.49 1210 2/0 19 1.09 13 10 80 1.56 1515
3/0 19 1.14 14 14 80 1.54 1392 3/0 19 1.14 16 10 80 1.61 1758
4/0 19 1.20 18 14 80 1.59 1621 4/0 19 1.20 16 9 110 1.76 2184
250 37 1.26 13 12 80 1.68 1820 250 37 1.26 25 10 110 1.79 2502
350 37 1.36 18 12 110 1.85 2418 350 37 1.36 22 8 110 1.94 3239
500 37 1.49 17 10 110 2.02 3182 500 37 1.49 31 8 110 2.07 4285
750 61 1.68 20 9 110 2.27 4433
1000 61 1.83 26 9 110 2.42 5578
Aluminum 133% Insulation Level(320mil)
1/0 1 1.01 6 14 50 1.31 691 1/0 1 1.01 16 14 50 1.31 811
1/0 19 1.05 6 14 50 1.37 744 1/0 19 1.05 16 14 50 1.37 865
2/0 19 1.09 7 14 50 1.42 812 2/0 19 1.09 20 14 50 1.42 969
3/0 19 1.14 9 14 50 1.47 903 2/0 19 1.09 13 12 50 1.45 1007
4/0 19 1.20 11 14 50 1.52 1007 3/0 19 1.14 25 14 50 1.47 1096
250 37 1.25 13 14 50 1.58 1105 3/0 19 1.14 16 12 50 1.50 1132
350 37 1.35 18 14 80 1.74 1398 4/0 19 1.20 32 14 50 1.52 1260
500 37 1.48 25 14 80 1.87 1715 4/0 19 1.20 20 12 50 1.55 1290
500 37 1.48 16 12 80 1.91 1760 4/0 19 1.20 13 10 50 1.60 1346
750 61 1.69 24 12 80 2.14 2361 250 37 1.25 25 12 50 1.61 1461
750 61 1.69 15 10 80 2.18 2417 250 37 1.25 16 10 80 1.72 1581
1000 61 1.84 31 12 80 2.29 2846 350 37 1.35 32 12 80 1.78 1831
1000 61 1.84 20 10 80 2.33 2924 350 37 1.35 20 10 80 1.82 1876
1000 61 1.84 16 9 80 2.36 2966 350 37 1.35 16 9 80 1.84 1910
500 37 1.48 29 10 80 1.95 2389
750 61 1.69 28 8 80 2.24 3391
1000 61 1.84 37 8 80 2.39 4188
MORE

35kv TR-XLPE Insulated

Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation 1/3Neutral Full Neutral
Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft AWG mil in Lb/kft
Copper 100% Insulation Level (345 mil)
1/0 19 1.10 9 14 80 1.50 1114 16 12 80 1.53 1397
2/0 19 1.15 11 14 80 1.54 1258 13 10 80 1.62 1652
3/0 19 1.20 14 14 80 1.59 1442 16 10 80 1.67 1896
4/0 19 1.25 18 14 80 1.65 1673 16 9 110 1.81 2305
250 37 1.31 13 12 110 1.80 1981 25 10 110 1.84 2596
350 37 1.41 18 12 110 1.90 2477 22 8 110 2.00 3371
500 37 1.54 17 10 110 2.10 3294 31 8 110 2.16 4448
750 61 1.73 20 9 110 2.32 4504
1000 61 1.88 26 9 110 2.47 5654
Aluminum 100% Insulation Level (345 mil)
1/0 19 1.10 6 14 80 1.49 842 16 14 80 1.49 976
2/0 19 1.14 7 14 80 1.53 914 13 12 80 1.57 1102
3/0 19 1.19 9 14 80 1.58 1010 16 12 80 1.62 1235
4/0 19 1.25 11 14 80 1.64 1120 13 10 110 1.78 1533
250 37 1.30 13 14 110 1.76 1330 16 10 110 1.84 1714
350 37 1.40 18 14 110 1.86 1572 16 9 110 1.96 2036
500 37 1.53 16 12 110 2.06 1969 29 10 110 2.10 2619
750 61 1.74 15 10 110 2.30 2560
1000 61 1.89 16 9 110 2.48 3099
MORE

35kv TR-XLPE Insulated

Size AWG Or kcmil Number Of Strands Nominal OD Over Insulation 1/3Neutral Full Neutral
Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight Number Of Wires Size Jacket Thickness Approximate Outside Diameter Approximate Net Weight
in AWG miol in Lb/kft AWG mil in Lb/kft
Copper 133% Insulation Level (420 mil)
1/0 19 1.25 9 14 80 1.65 1264 16 12 80 1.68 1489
2/0 19 1.30 11 14 110 1.76 1517 13 10 110 1.83 1827
3/0 19 1.35 14 14 110 1.81 1709 16 10 110 1.88 2080
4/0 19 1.40 18 14 110 1.86 1948 16 9 110 1.96 2412
250 37 1.46 13 12 110 1.95 2160 25 10 110 1.99 2738
350 37 1.56 18 12 110 2.08 2716 22 8 110 2.18 3537
500 37 1.69 17 10 110 2.26 3499 31 8 110 2.31 4603
750 61 1.88 20 9 110 2.47 4728
1000 61 2.03 26 9 110 2.26 5892
Aluminum 133% Insulation Level (420 mil)
1/0 19 1.25 6 14 80 1.64 990 16 14 80 1.64 1124
2/0 19 1.29 7 14 110 1.75 1173 13 12 110 1.78 1363
3/0 19 1.34 9 14 110 1.80 1276 16 12 110 1.83 1504
4/0 19 1.40 11 14 110 1.86 1395 13 10 110 1.93 1705
250 37 1.45 13 14 110 1.91 1507 16 10 110 1.99 1891
350 37 1.56 18 14 110 2.04 1807 16 9 110 2.15 2271
500 37 1.68 16 12 110 2.21 2172 29 10 110 2.25 2821
750 61 1.89 15 10 110 2.46 2782
1000 61 2.04 16 9 110 2.63 3335
MORE

留言

请填写你想要知道的信息!我们将在5分钟内回复您!
