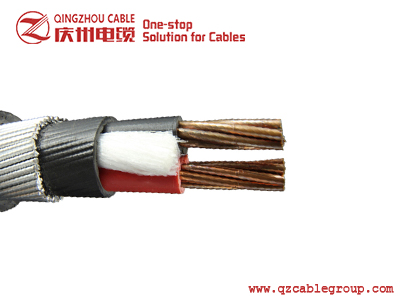

600/1000 V XLPE insulated, wire armoured with copper conductor BS 5467
APPLICATIONS
These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial plants, as well as in switchgears, in applications where there is a risk of mechanical damage.
CABLE CHARACTERISTI
APPLICABLE STANDARDS
Low Voltage power cables are designed and tested to meet all the requirements of the latest edition of BS 5467 standard. In addition, can also supply a range of alternative designs to meet customer-specified requirements.
CABLE CONSTRUCTION
Conductor
Plain annealed stranded circular or circular compacted copper conductor (Class 2 to BS EN 60228).
Plain annealed stranded circular (rm) or sector shaped (sm) copper conductor (Class 2 to BS EN 60228).
Insulation
Extruded layer of Cross-linked Polyethylene (XLPE) – Type (GP 8) to BS 7655-1.3.
Bedding
Extruded layer of Polyvinyl Chloride (PVC).
Armouring
Single layer of round non-magnetic (aluminium) wires.
Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) – Type (9) to BS 7655-4.2.
600/1000 V CU/XLPE/AWA/PVC Single-core cables, XLPE insulated, wire armoured with copper conductor BS 5467
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
|||||||||
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
||||||||
DC at 20 °C |
AC at 90 °C |
Buried direct in ground |
In buried ducts |
In free air |
|||||||
mm² |
Ω / km |
Ω / km |
(a) |
(b) |
(c) |
(d) |
(e) |
(f) |
(g) |
||
A |
A |
A |
A |
A |
A |
A |
mm |
kg / km |
|||
50 |
0.3870 |
0.4939 |
178 |
178 |
152 |
163 |
202 |
206 |
249 |
17.0 |
675 |
70 |
0.2680 |
0.3425 |
217 |
215 |
189 |
198 |
253 |
257 |
307 |
19.5 |
940 |
95 |
0.1930 |
0.2472 |
257 |
255 |
223 |
234 |
308 |
310 |
366 |
21.3 |
1215 |
120 |
0.1530 |
0.1965 |
290 |
287 |
253 |
263 |
354 |
354 |
413 |
22.8 |
1475 |
150 |
0.1240 |
0.1598 |
323 |
318 |
284 |
291 |
403 |
400 |
461 |
26.0 |
1860 |
185 |
0.0991 |
0.1286 |
361 |
354 |
320 |
322 |
461 |
453 |
512 |
28.3 |
2270 |
240 |
0.0754 |
0.0992 |
411 |
401 |
367 |
360 |
539 |
521 |
579 |
30.8 |
2855 |
300 |
0.0601 |
0.0805 |
456 |
440 |
410 |
391 |
612 |
583 |
637 |
33.6 |
3475 |
400 |
0.0470 |
0.0647 |
494 |
472 |
450 |
410 |
685 |
628 |
672 |
38.0 |
4515 |
500 |
0.0366 |
0.0528 |
539 |
511 |
497 |
439 |
770 |
691 |
729 |
42.0 |
5695 |
630 |
0.0283 |
0.0436 |
582 |
547 |
541 |
465 |
854 |
749 |
783 |
46.2 |
7105 |
800 |
0.0221 |
0.0368 |
599 |
565 |
564 |
481 |
908 |
781 |
829 |
52.1 |
9215 |
1000 |
0.0176 |
0.0325 |
629 |
595 |
601 |
513 |
996 |
849 |
915 |
60.7 |
11490 |
600/1000 V CU/XLPE/SWA/PVC Multi-core cables, XLPE insulated, wire armoured with copper conductor BS 5467
Nominal cross sectional area |
ELECTRICAL DATA |
DIMENSIONS AND WEIGHTS |
||||||
Max. Conductor Resistance |
Continuous Current Ratings |
Approx. overall diameter |
Approx. overall weight |
|||||
DC at 20 °C |
AC at 90 °C |
Laid in ground |
Laid in ducts |
Laid in free air |
||||
mm² |
Ω / km |
Ω / km |
A |
A |
A |
mm |
kg / km |
|
Two-core Cables |
||||||||
1.5 |
rm |
12.1000 |
15.4287 |
33 |
24 |
29 |
11.5 |
285 |
2.5 |
rm |
7.4100 |
9.4485 |
42 |
31 |
38 |
13.0 |
360 |
4 |
rm |
4.6100 |
5.8783 |
55 |
40 |
51 |
14.1 |
430 |
6 |
rm |
3.0800 |
3.9274 |
68 |
50 |
64 |
15.2 |
510 |
10 |
rm |
1.8300 |
2.3336 |
90 |
67 |
87 |
16.6 |
635 |
16 |
rm |
1.1500 |
1.4667 |
116 |
87 |
114 |
19.3 |
935 |
25 |
rm |
0.7270 |
0.9275 |
151 |
114 |
154 |
22.6 |
1280 |
35 |
rm |
0.5240 |
0.6688 |
180 |
138 |
188 |
26.0 |
1765 |
50 |
sm |
0.3870 |
0.4944 |
204 |
158 |
211 |
26.5 |
1875 |
70 |
sm |
0.2680 |
0.3431 |
247 |
193 |
259 |
28.7 |
2355 |
95 |
sm |
0.1930 |
0.2481 |
296 |
235 |
320 |
33.4 |
3280 |
120 |
sm |
0.1530 |
0.1976 |
336 |
270 |
372 |
36.9 |
3915 |
150 |
sm |
0.1240 |
0.1612 |
375 |
304 |
421 |
39.7 |
4620 |
185 |
sm |
0.0991 |
0.1302 |
424 |
349 |
489 |
45.9 |
6060 |
240 |
sm |
0.0754 |
0.1012 |
485 |
403 |
569 |
49.8 |
7360 |
300 |
sm |
0.0601 |
0.0829 |
538 |
451 |
639 |
53.4 |
8800 |
400 |
sm |
0.0470 |
0.0676 |
598 |
504 |
719 |
56.9 |
12800 |
Three-core Cables |
||||||||
1.5 |
rm |
12.1000 |
15.4287 |
27 |
19 |
24 |
12.0 |
315 |
2.5 |
rm |
7.4100 |
9.4485 |
35 |
25 |
32 |
13.6 |
400 |
4 |
rm |
4.6100 |
5.8783 |
45 |
33 |
42 |
14.7 |
485 |
6 |
rm |
3.0800 |
3.9274 |
56 |
41 |
53 |
16.0 |
590 |
10 |
rm |
1.8300 |
2.3336 |
75 |
56 |
73 |
18.6 |
840 |
16 |
rm |
1.1500 |
1.4667 |
96 |
72 |
96 |
21.0 |
1090 |
25 |
rm |
0.7270 |
0.9275 |
125 |
95 |
130 |
25.6 |
1665 |
35 |
sm |
0.5240 |
0.6688 |
142 |
109 |
145 |
25.2 |
1905 |
50 |
sm |
0.3870 |
0.4944 |
169 |
132 |
177 |
28.2 |
2390 |
70 |
sm |
0.2680 |
0.3431 |
206 |
163 |
222 |
31.7 |
3145 |
95 |
sm |
0.1930 |
0.2481 |
246 |
197 |
271 |
36.5 |
4325 |
120 |
sm |
0.1530 |
0.1976 |
279 |
226 |
314 |
39.8 |
5195 |
150 |
sm |
0.1240 |
0.1612 |
311 |
255 |
356 |
44.1 |
6590 |
185 |
sm |
0.0991 |
0.1302 |
349 |
290 |
407 |
48.1 |
7905 |
240 |
sm |
0.0754 |
0.1012 |
400 |
336 |
470 |
53.2 |
9830 |
300 |
sm |
0.0601 |
0.0829 |
446 |
378 |
541 |
58.3 |
11985 |
400 |
sm |
0.0470 |
0.0676 |
499 |
427 |
620 |
65.5 |
14940 |
Four Core Cables |
||||||||
1.5 |
rm |
12.1000 |
15.4287 |
27 |
19 |
24 |
12.7 |
350 |
2.5 |
rm |
7.4100 |
9.4485 |
35 |
25 |
32 |
14.5 |
455 |
4 |
rm |
4.6100 |
5.8783 |
45 |
33 |
42 |
15.8 |
560 |
6 |
rm |
3.0800 |
3.9274 |
56 |
41 |
53 |
18.0 |
800 |
10 |
rm |
1.8300 |
2.3336 |
75 |
56 |
73 |
19.9 |
990 |
16 |
rm |
1.1500 |
1.4667 |
96 |
72 |
96 |
22.6 |
1305 |
25 |
rm |
0.7270 |
0.9275 |
125 |
95 |
130 |
27.6 |
2010 |
35 |
sm |
0.5240 |
0.6688 |
142 |
109 |
145 |
28.2 |
2380 |
50 |
sm |
0.3870 |
0.4944 |
169 |
132 |
177 |
31.9 |
3005 |
70 |
sm |
0.2680 |
0.3431 |
206 |
163 |
222 |
37.4 |
4290 |
95 |
sm |
0.1930 |
0.2481 |
246 |
197 |
271 |
40.1 |
5435 |
120 |
sm |
0.1530 |
0.1976 |
279 |
226 |
314 |
45.4 |
7000 |
150 |
sm |
0.1240 |
0.1612 |
311 |
255 |
356 |
49.9 |
8370 |
185 |
sm |
0.0991 |
0.1302 |
349 |
290 |
407 |
54.9 |
10105 |
240 |
sm |
0.0754 |
0.1012 |
400 |
336 |
470 |
60.9 |
12680 |
300 |
sm |
0.0601 |
0.0829 |
446 |
378 |
541 |
66.5 |
15395 |
400 |
sm |
0.0470 |
0.0676 |
499 |
427 |
620 |
76.8 |
20215 |
