ADSS OPTICAL FIBER CABLE

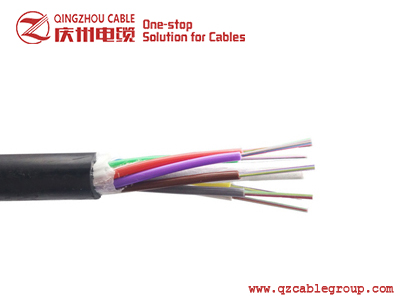

Single Layer All-Dielectric Self-Supporting ADSS Cable
Self-Supporting ADSS Cable Description:
Single layer (Loose tube stranding, Non-metal strength member, Half dry water-blocking, Aramid yarn strength member, PE outer jacket)
Application: Self-support Aerial installation
Self-Supporting ADSS Cable Typical Technical Parameter:
Span (meter) |
Weight(kg/km) |
Diameter(mm) |
Initial Tension (N) Unload Load |
|
12fibers |
|
|
|
|
100 |
121 |
12.2 |
892 |
1479 |
200 |
125 |
12.4 |
1338 |
2043 |
300 |
127 |
12.6 |
2232 |
3286 |
400 |
132 |
13.3 |
3280 |
4800 |
24fibers |
|
|
|
|
100 |
121 |
12.2 |
904 |
1486 |
200 |
125 |
12.4 |
2261 |
3304 |
300 |
127 |
12.6 |
3322 |
4826 |
Note:
1. Only a part of Self-Supporting ADSS Cables are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
Double Layer Aerial ADSS Cable

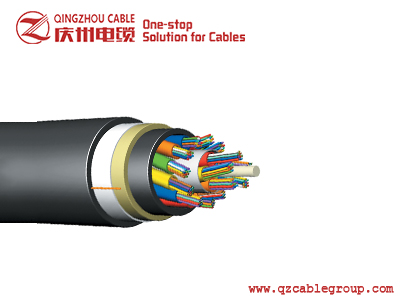

Double Layer Aerial ADSS Cable Description:
Double Layer Aerial ADSS Cable is up to 144 optical fibres in jelly-filled loose tubes, laid up around a central non-metallic strength member. The cable is water blocked, aramid yarn reinforced and polyethylene sheathed. Surface printing for the cable includes sequential length marking at one-metre intervals. Mainly installed at existing 220kV or lower voltage power lines . Two Jacket and stranded loose tube design .
Application: duct, direct buried and aerial.
Double Layer Aerial ADSS CableTechnical Parameter:
Ref. |
Ref. |
Rec. Daily |
Max Allowable |
Break |
Strength |
Modulus of |
Heat |
Suitable Span |
||||
PE |
AT |
A |
B |
C |
D |
|||||||
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
15.5 |
190 |
204 |
9.0 |
26 |
60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
Note:
1. Only a part of Double Layer Aerial ADSS Cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Cables can be supplied with dry core or semi dry core
4. Specially designed Cable structure is available on request.
Double Protector Self-Supporting Aerial ADSS Cable
ADSS Optic Fiber Cable Description:
Double protector (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE inner jacket, Aramid yarn strength member, PE outer jacket)
Application: Self-support Aerial installation
ADSS Optic Fiber Cable Typical Technical Parameter:
Span (meter) |
Weight(kg/km) |
Diameter(mm) |
Initial Tension (N)Unload Load |
|
12fibers |
|
|
|
|
100 |
121 |
12.2 |
892 |
1479 |
200 |
125 |
12.4 |
1338 |
2043 |
300 |
127 |
12.6 |
2232 |
3286 |
400 |
132 |
13.3 |
3280 |
4800 |
24fibers |
|
|
|
|
100 |
121 |
12.2 |
904 |
1486 |
200 |
125 |
12.4 |
2261 |
3304 |
300 |
127 |
12.6 |
3322 |
4826 |
Note:
1. Only a part of ADSS Optic Fiber Cable are listed in the table. More can be produce as required .
2. Cables can be supplied with a range of single mode or multimode fibers.
3. Specially designed Cable structure is available on request.
